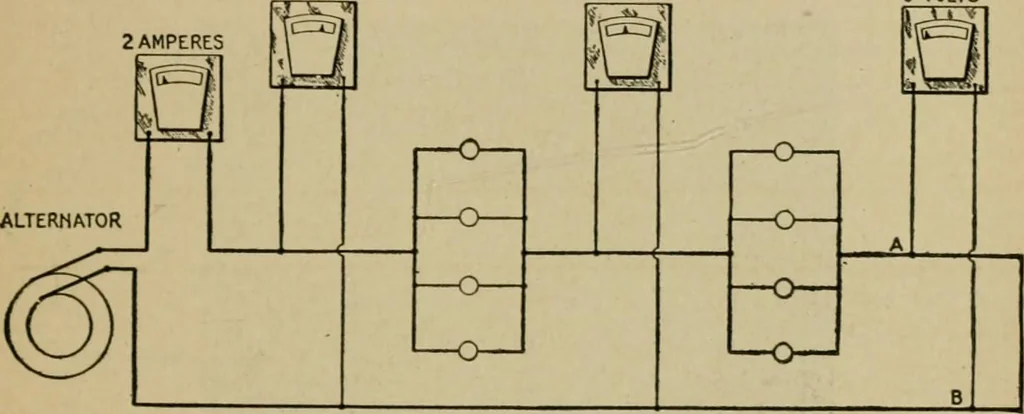

STEMS 1,541 Parallel Circuits.—These are used for constant pressureoperation. Such arrangement provides a separate circuit foreach unit making them independent so that they may vary insize and each one can be started or stopped without interferingwith the others. Parallel circuits are largely used… … Fig. 2,137.—Diagram of parallel series circuit, showing fall of pressure between units. Thissystem is very rarely used; it has the disadvantage that if a lamp filament break, theresistance of the circuit is altered and the strength of the current changed. The volt-meter shows the fall of pressure…
