Wright-Martin Aircraft Corporation, New Brunswick, N.J · New Brunswick, N.J., Wright-Martin Aircraft Corporation · leaf 38

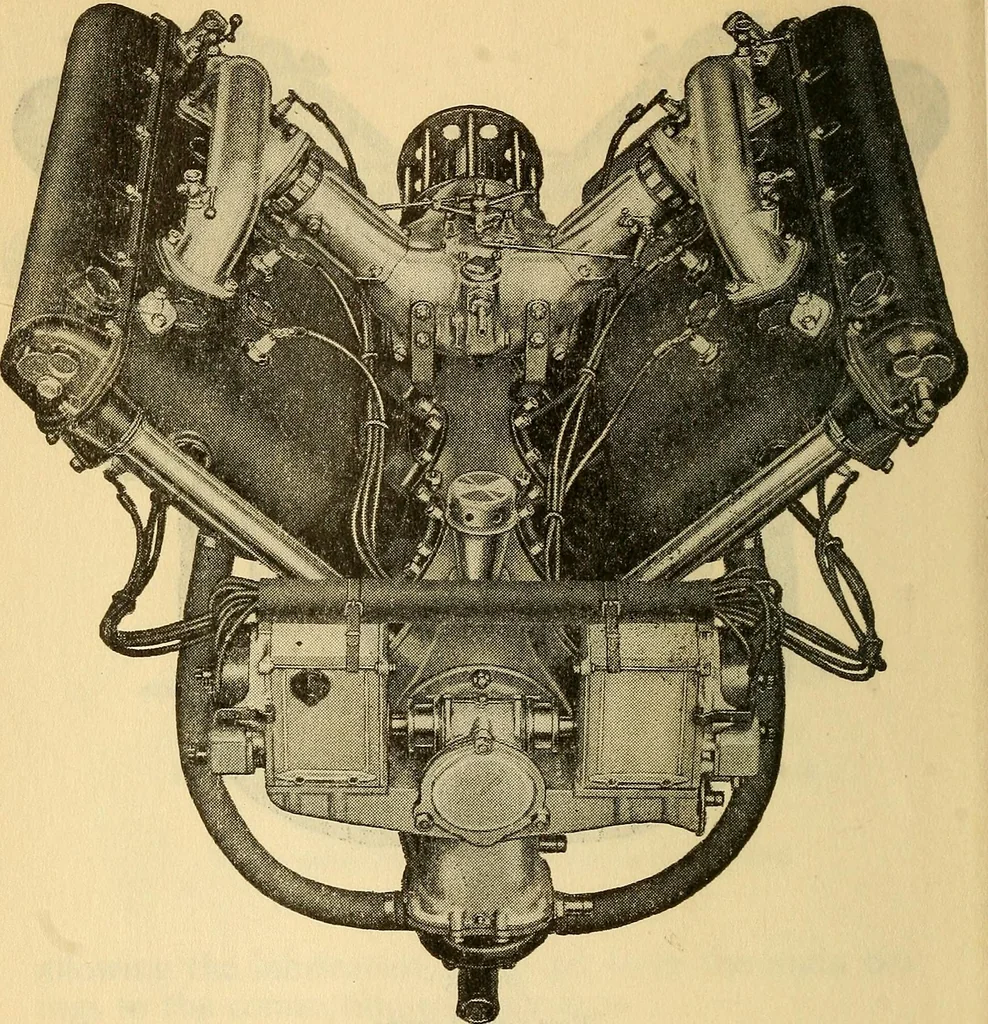

Plate 5Rear view of engine Magneto Support and Drive. The magneto support is an aluminum casting boltedon the rear end of the crankcases. A small shaft, witha spiral gear, driven from the end of the crankshaft ismounted in the center of the magneto support. Thisshaft drives, by means of the spiral… … Valves. Plate 9Three-quarter top view of engine from rear. The valves are set vertically in the cylinders alongthe center of each block and are directly operated bya single, super-imposed camshaft. The valves areTungsten Steel, with large diameter hollow stems,working in cast-iron bushings,…
