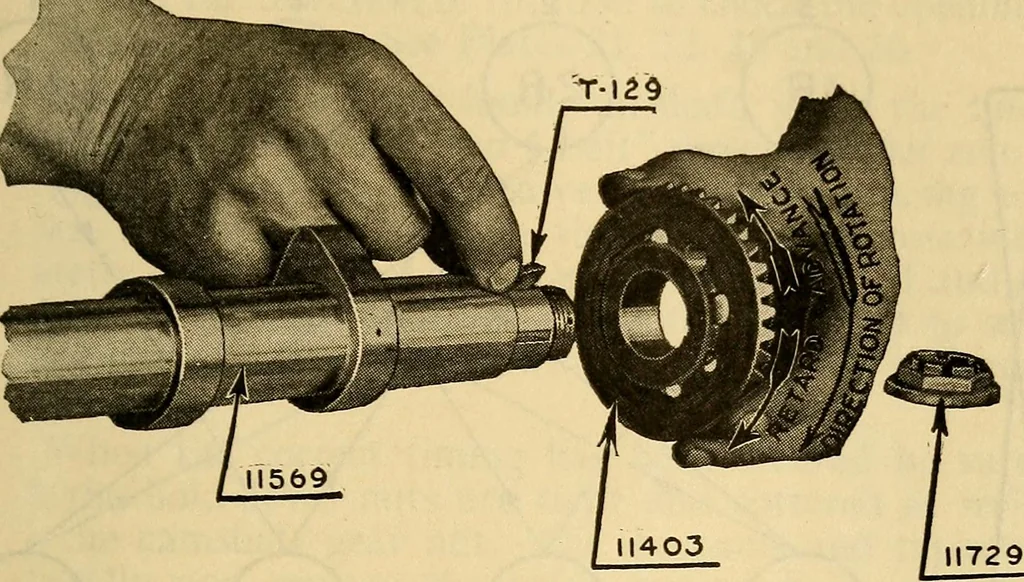

e of the following changes is necessary, after firstsetting the line on the timing disc marked E. C—1,0.1 and 4 Left at zero on the scale. If the timing is late advance, and early retardthe camshaft. See Plates 32 and 33. a. If the camshaft is 20° or 62.8 m/m late orearly on the timing disc or… … Plate 33Adjusting the camshaft gear on the camshaft the inlet and exhaust cams of No. 1-L parallel to theirrespective tappets, Plate 28. Turn the engine back aquarter of a turn and then slowly in the direction ofrotation to check opening as originally done. Plate 26. b. If the camshaft is 10°-31.4…
