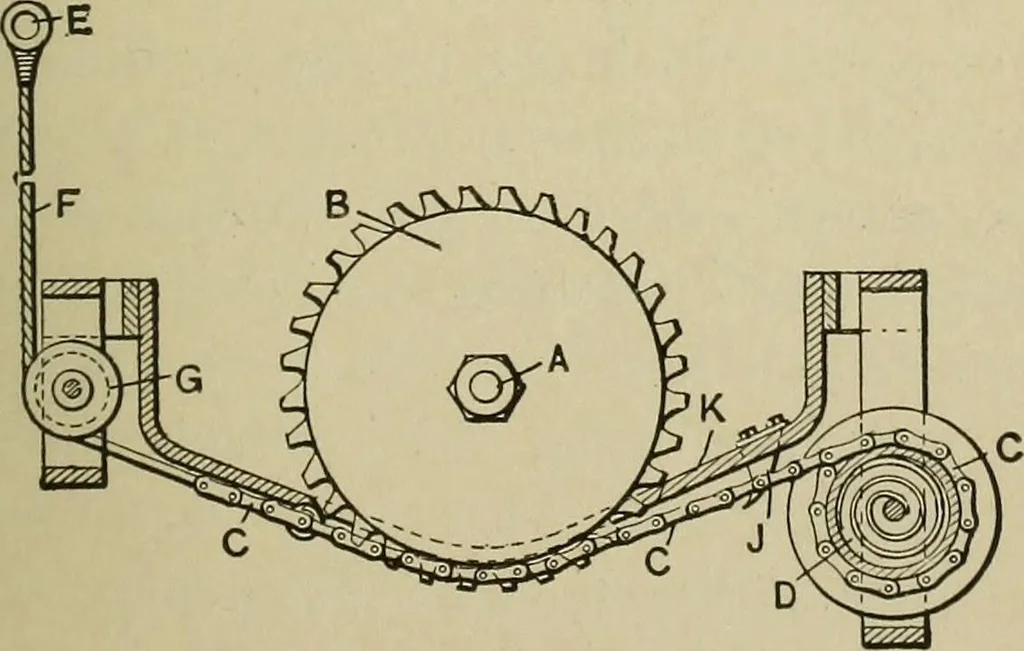

TOR STARTER. A starting wheel B,with oblique saw teeth, is fixed on the motor shaft A. A sprocket chain C, C is wound on adrum containing a coiledspring D, so arranged as torewind the chain with a stopJ, so as to allow it to hangfree from the ratchet wheelwhen the finger loop at E isdropped to the… … 120 EXPLOSIVE MOTOR POWER AND APPLIANCES.
