Illustrated catalogue and general description of improved machine tools for working metal (1899)
Sellers, William, & co. [from old catalog] · Philadephia, Levytype company · leaf 45

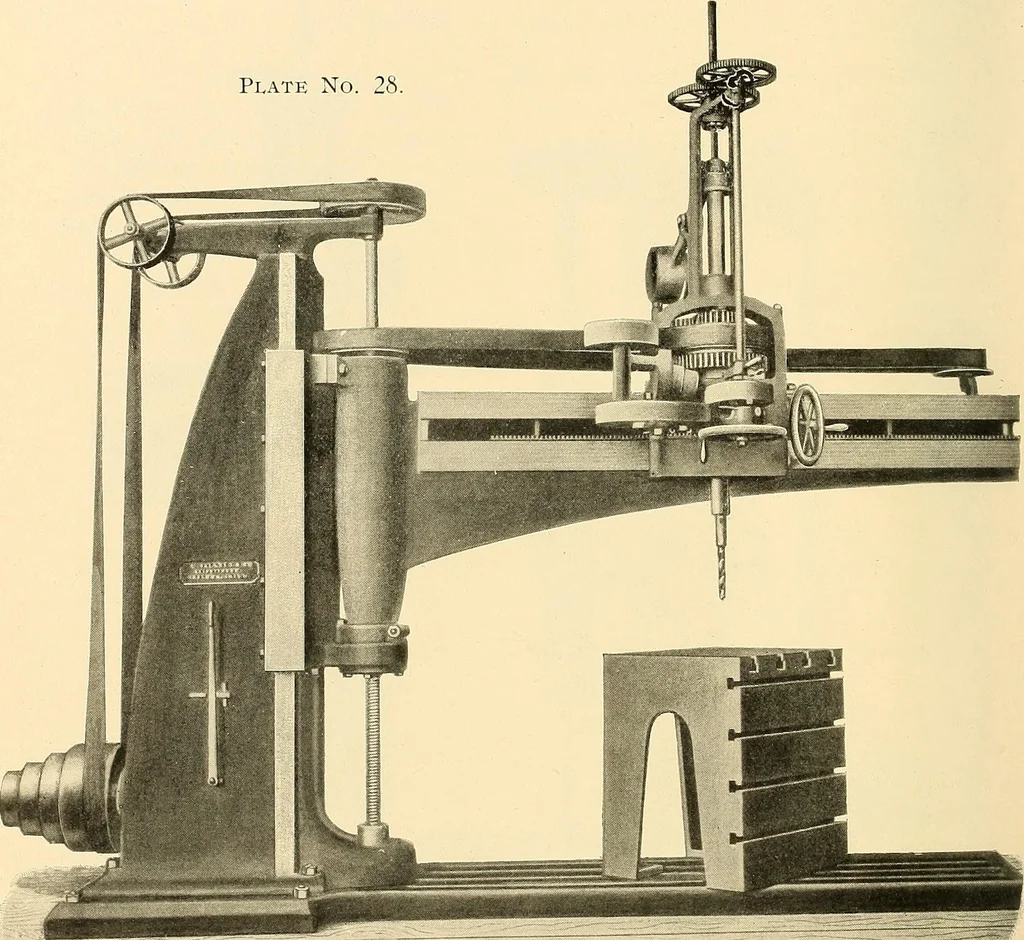

ose of spindle, 67. Arm carrjing drill-ing-head adjustable vertically by power. Improved friction feed, counterbalancedspindle. Machine complete with countershaft, wrenches, depth-gauge forcounterbores, and sample drill socket. Slotted table for work, 24 square, 30high. Fast and loose pulleys on… … 96 RADIAL DRILLING MACHINE. Upright carried by slotted bed or floor-plate. Maximum overreach ofspindle from centre of rotation of arm, 83. Spindle, 2^2 diameter, ^^yistroke. Greatest height from floor to nose of spindle, 67. Arm carrying drill-ing-head adjustable vertically by power. Improved…
