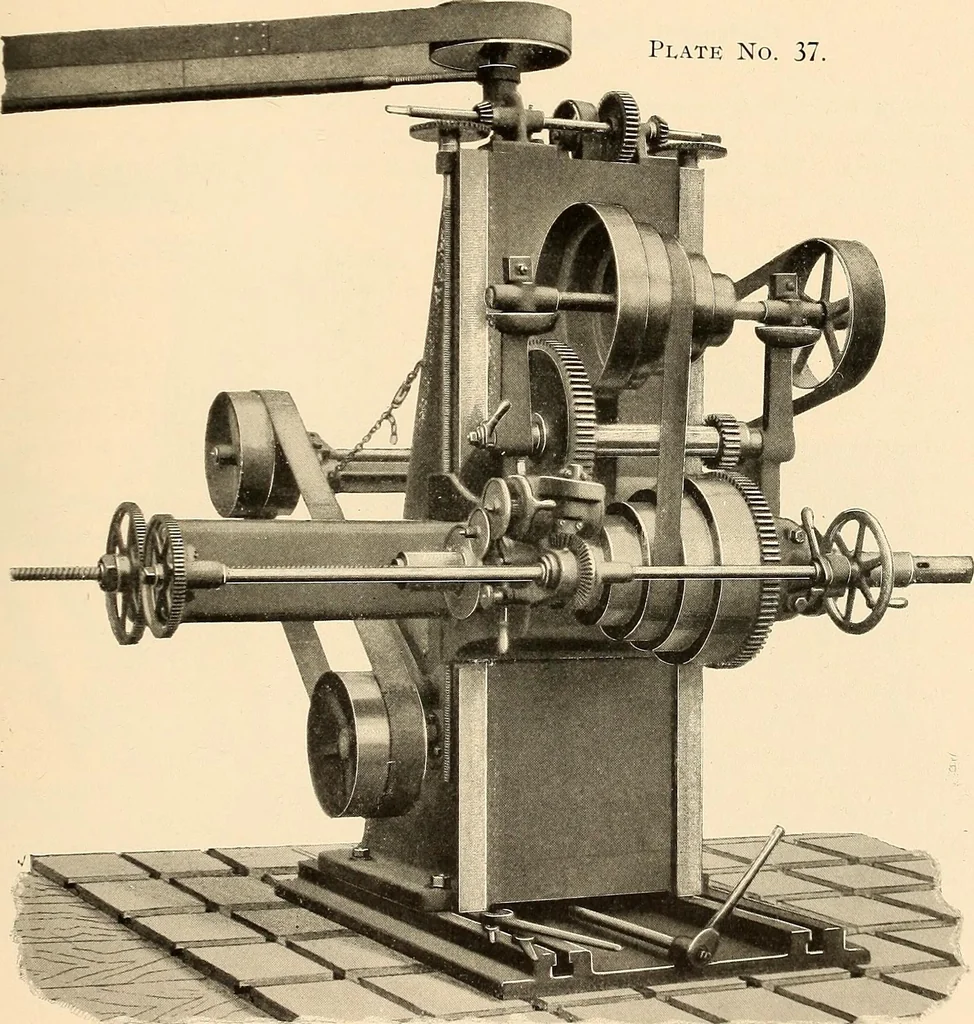

upright to any position on the bed he desires, and with the utmostnicety; he can raise or lower the saddle to bring the spindle to the proper eleva-tion; this motion being accomplished rapidly and with great accuracy. The greatlength of horizontal and vertical movements which is usual in such… … FLOOR-BORING MACHINE—Driven by Belt and Swing Frame. Minimum height of spindle above floor-plate, 14. Maximum height, 6ft. 2. Horizontal adjustment of upright on slide, 4 ft. 10. Spindle, 4 di-ameter, 30 stroke. Largest lift on cone pulle}, 20 diameter for 3 belt. Feedsvariable by our improved…
