Information; elementary electricity, motor car electric systems, the gas engine from an ignition point of view, driving the car (1920)
Phillips, Harvey Elmer, 1874-1948 · Dayton, Ohio, Auto Electric Systems Publishing Company · leaf 267

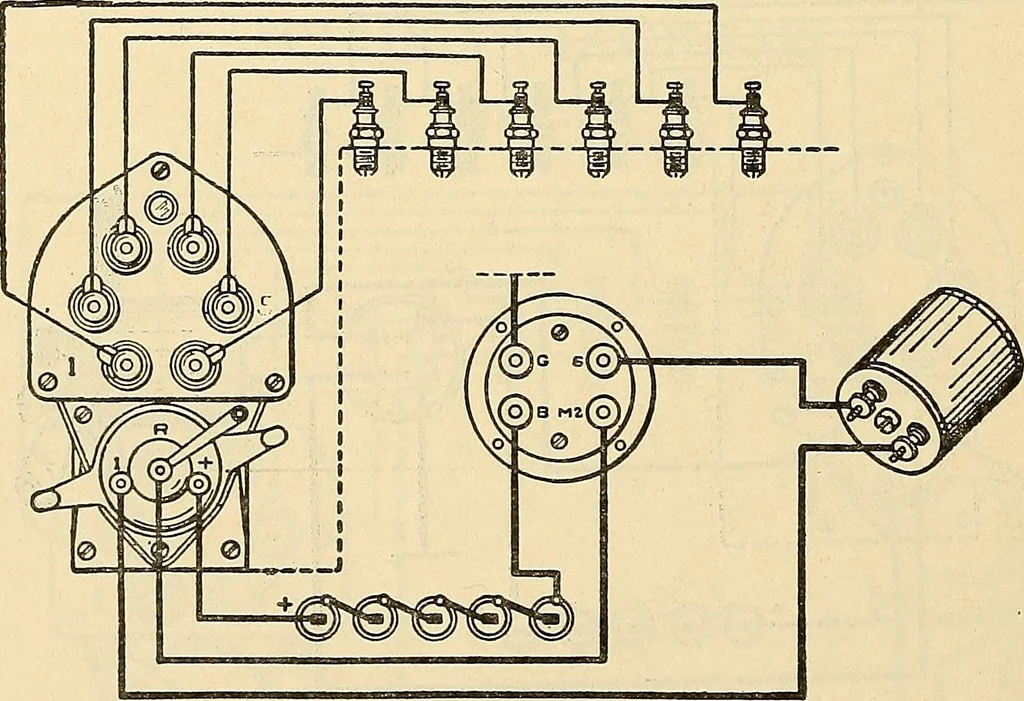

Fig. 27 SU4-D Clockwise System WIRING DIAGRAMS TYPE SU6-D … Fig. 28, SU6-D Clockwise System MAGNETOS 265 SPLITDORF MAGNETO IGNITION, MODELS A, AW, AX and W, X, Y, AND Z. The four-cylinder models, A, AW, AX, and X runs at crank shaft speed, andsix-cylinder models, Y and Z, at one and one-half crank shaft speed. The driveshould be either geared direct to the…
Automobiles
