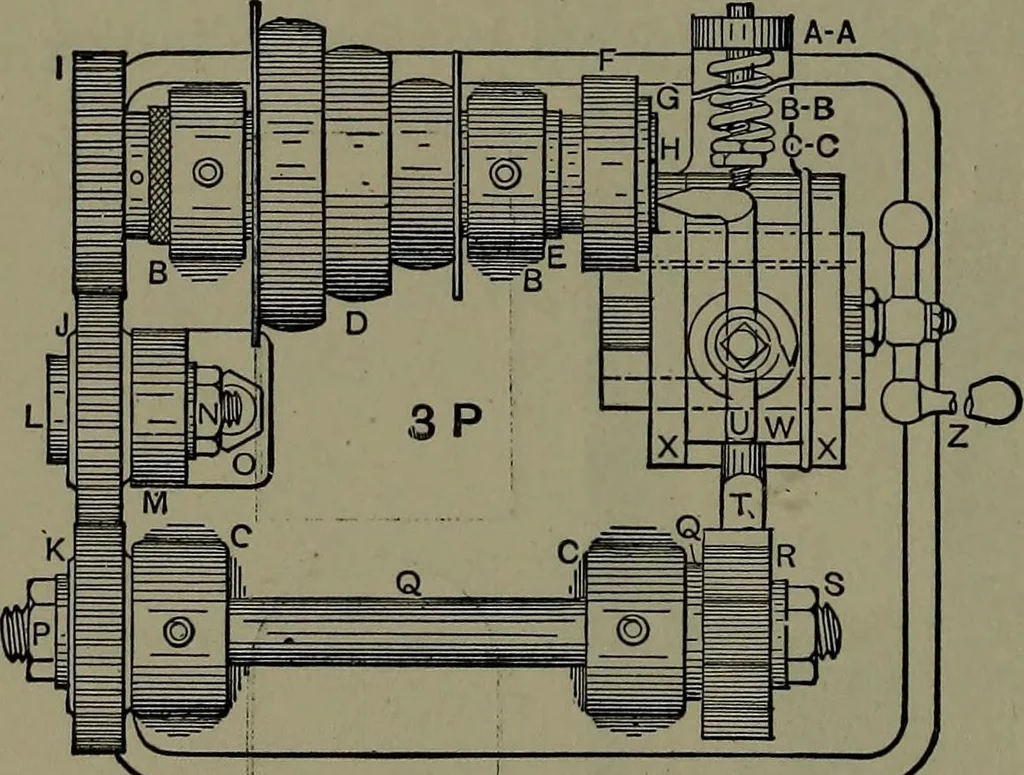

ttiJLS^^ ifirri^-n … PLAN. work. The tool U mayhave from one to four pointslike a chasing tool to varythe design of the work. His the work in the chuck andR the cam or rose plate. Thefollower stud T is mountedon the tool post slide andheld against the rose plate bya spring. The relative sizesof the gears, I, J, K,…
