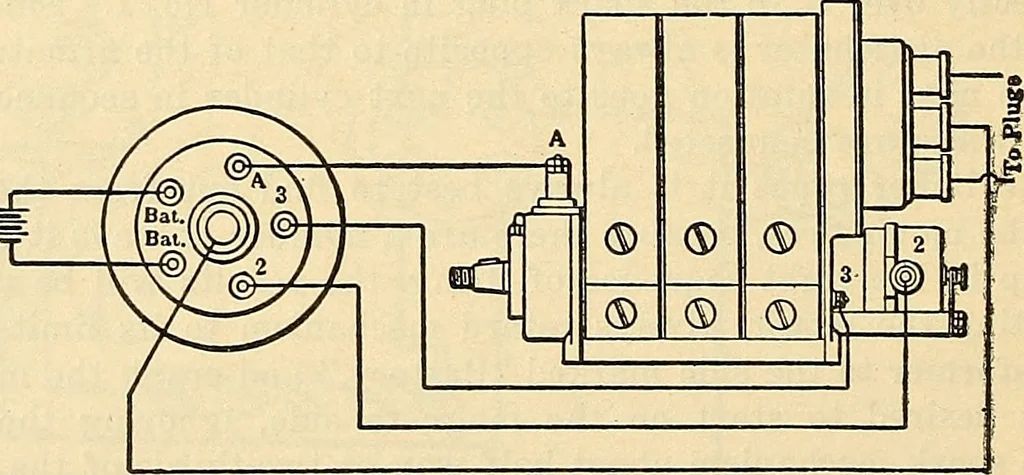

Fig. 32. £ Wiring Diagram of Model Y Magneto and T S F Transformer ti-t r … Wiring Diagram of Model Z Magneto and T S B Transformer prick punch so that it will not jar loose. Then remove the distributor block. Alsoremove the insulated brush that is located at the driving end of back plate ofmagneto, take out the four screws that hold same, then remove back plate and…
