Information; elementary electricity, motor car electric systems, the gas engine from an ignition point of view, driving the car (1920)
Phillips, Harvey Elmer, 1874-1948 · Dayton, Ohio, Auto Electric Systems Publishing Company · leaf 294

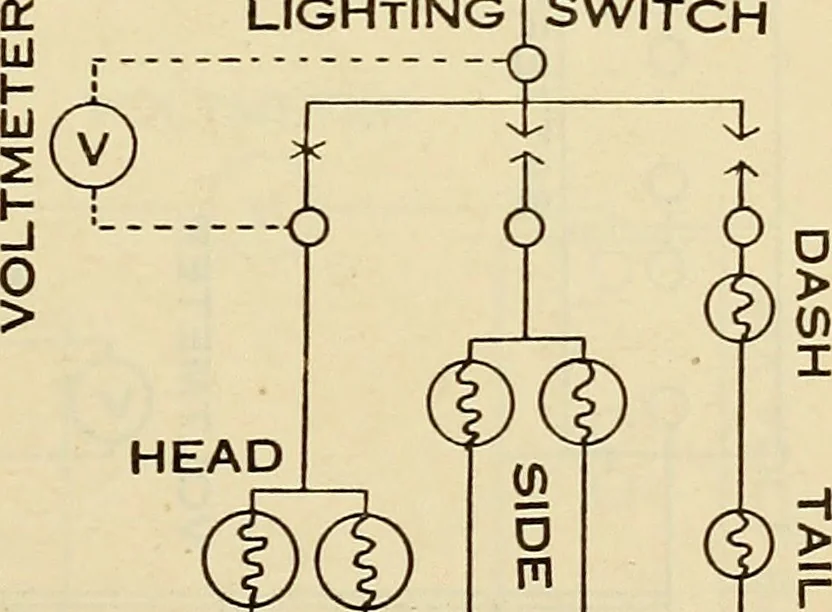

the volt-meter is bridged across the lights and lighting switch. This gives the voltageup to the lighting switch. Full battery voltage should be maintained up to this point. o Q £© LIGHTlNGl SWITCH nP T ±-4 $ HEAD (M) FIG. 39 Figure 39. This shows same lighting circuits as in Figure 38, excepting… … FIG. 40 Figure 40. This shows same lighting circuit as in Figure 39, excepting thatheadlight switch contacts are closed. When headlights are turned on, the voltmetershould not give an indication. If it does, the switch contacts are bad or there isa bad connection in the switch in this circuit. 292…Automobiles
