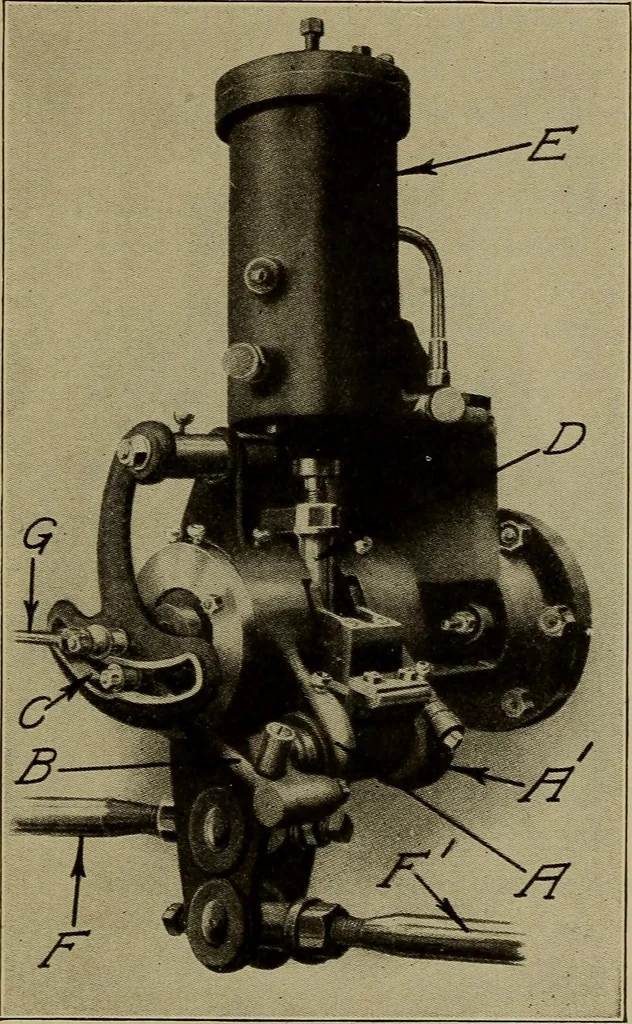

in the cam, it raises the arm B, which disengagesthe hook dies and allows the dashpot. rod D to snap the steamvalve shut. E is the dashpot cylinder. F F are the driving rods,the one on the right being connected to the eccentric on the engineshaft, and the one on the left driving the valve gear for… … Fig. 80. Nordberg Drop Gear Courtesy of Nordberg Manufacturing Company, Milwaukee, Wisconsin 90 VALVE GEARS Brown Releasing Gear. In addition to the Reynolds hook,several other devices are in use for opening and releasing Corlissadmission valves. Among them, the Brown releasing gear, Fig.81, may be…
