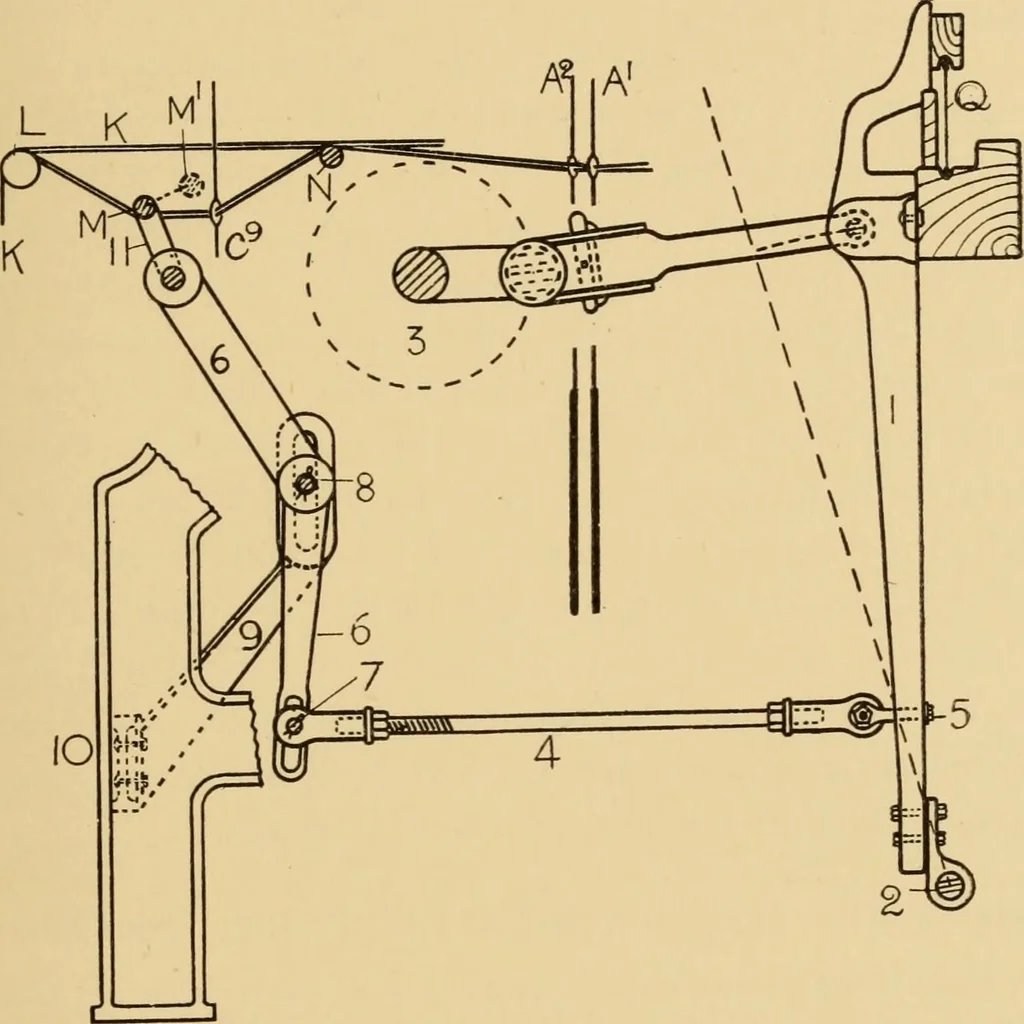

racket 9 which is compounded with the loom GAUZE AND LENO JACQUARDS. 199 by the stud 10. The upper arm of lever 6 is set screwed to a shortlever arm 11 in turn compounded with a round steel bar m. Thebar m passes over all the crossing warp threads and under all thenon-douped threads to the opposite… … Fig. 192. Before the operation of weaving is commenced all the crossingthreads are slackened and depressed, below the normal warp line,through the medium of the lingoes, suspended from the harness c9and its duplicates. With each ascent of any of the doup standardsb to form the gauze shed, the…
