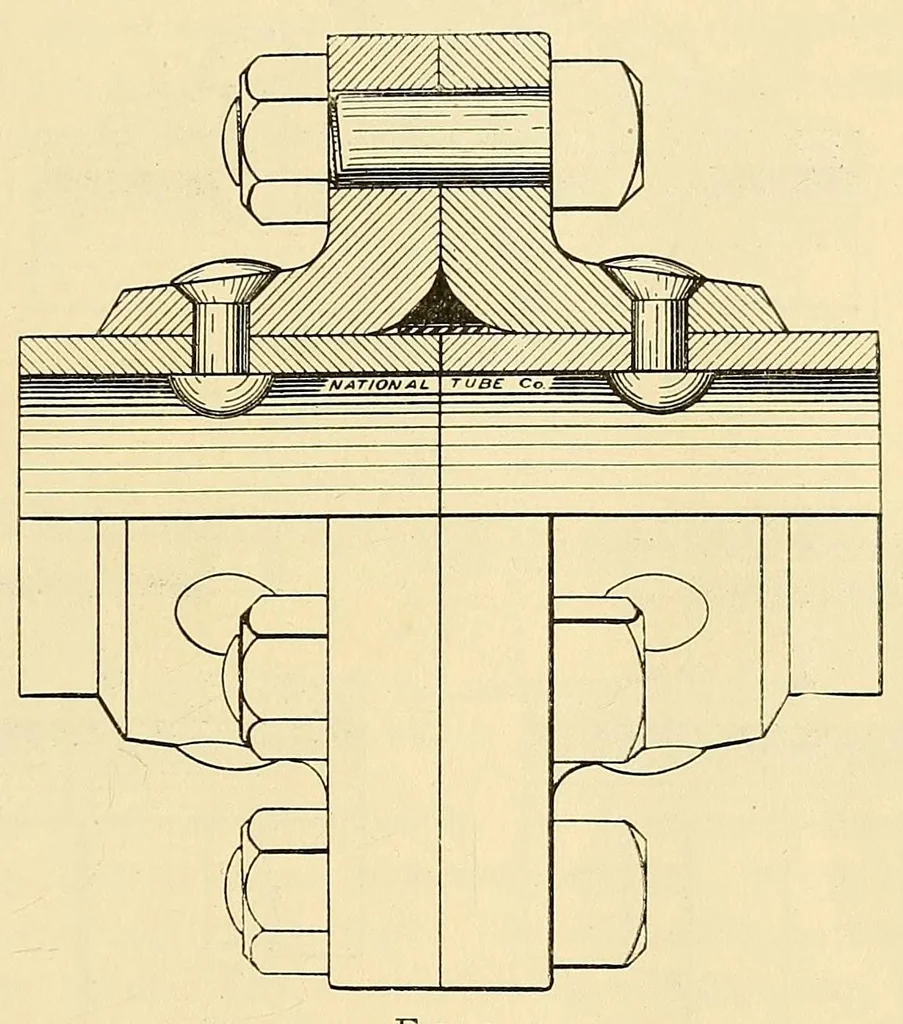

In a properly designed flange joint a small gasket may be made quite as effective as a large one, and there is no reason why it should extend outside the bolt circle. With reference to the manner in which they are attached to the pipes, flanges may be classified as screwed, riveted and zvelded.… … Fig. s. pany, of Chicago, in their steam-fitting business, to screw the pipe into the flanges until the ends project about -jV inch. By means of a special lathe the projecting ends are then cut off and a light cut taken off the face of each flange to make it normal to the axis of the pipe. To…
