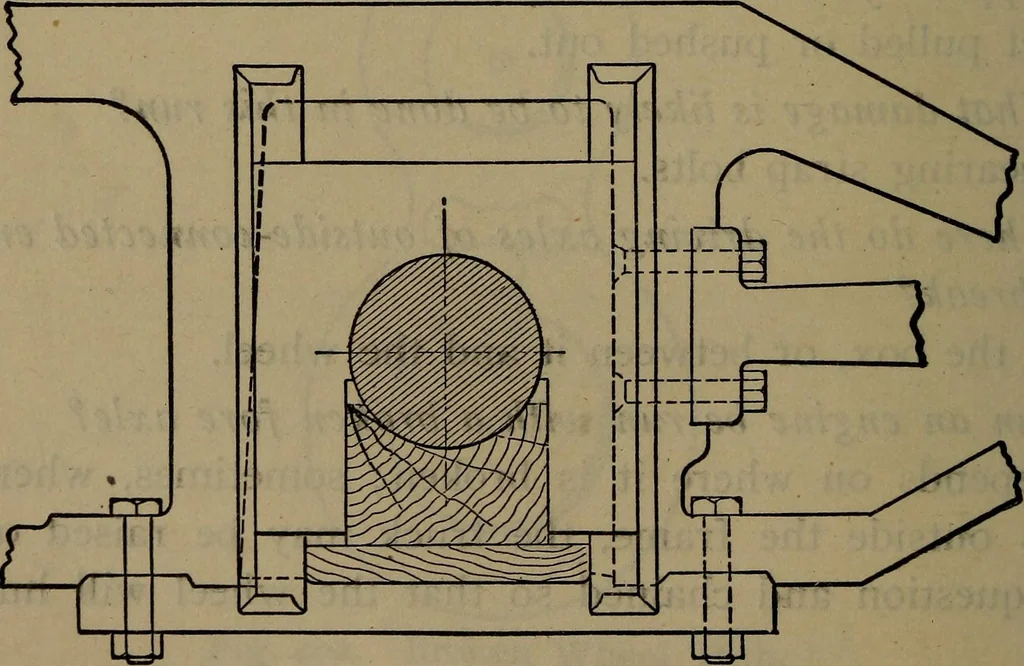

the frame by runninga tie between their spokes and over the frame, and wedgeunder the tie so as to chock the boxes against the frame;chain the wheels together at the bottom. Jack up one side sothat the pedestal braces touch the boxes; block up (or down)the ends of the spring and equalizer; repeat… … Fig. 403. Blocked Driving Axle. A. Jack up again and block between driving boxes andframes. Q. What should be done in case of the breakage of the ACCIDENTS TO AXLES. 697 front driving axle on a six-wheel-connected engine, outsidethe driving box? A. All the side-rods should be taken off; the broken…
