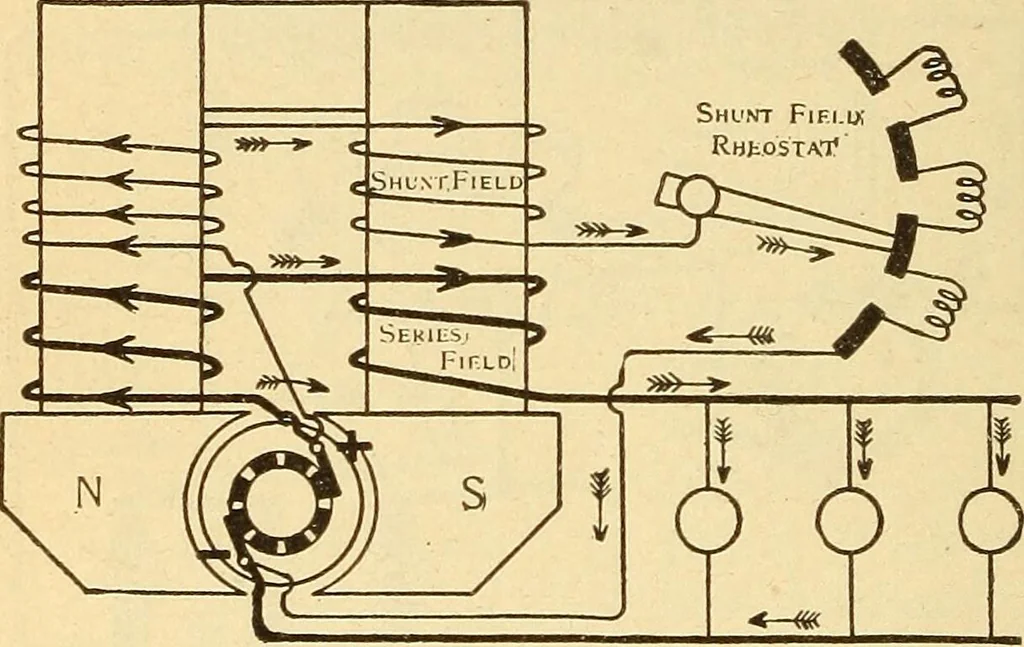

lines, so that a constant voltage willthen be maintained at some distant point from the generator.The machine is then said to be over-compounded. This over-compounding is usually designed for a rise of voltage from 5to 10 per cent of that of the machine, from no load to fullload. In design, the… … Fig. 368.—Compound Wound Dynamo.The series and shunt field act in unison. F—Fig. 360. DIRECT CURRENT DYNAMOS. m silver shunt in parallel with the series field so that the maincurrent divides between the two circuits, Z, Fig. 371; also19, of Fig. 361. The length of the shunt can then be regu-lated…
