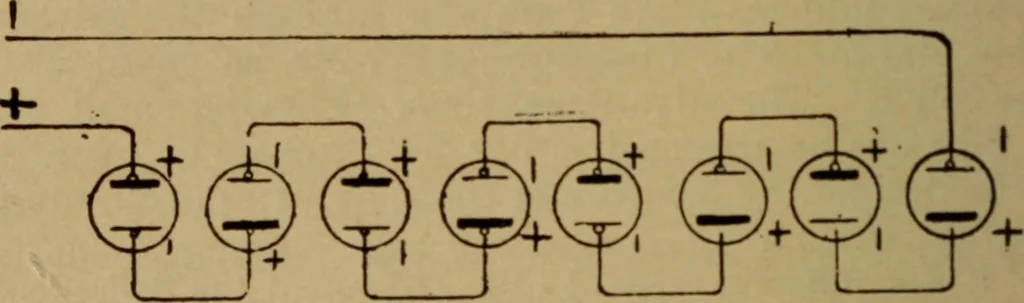

current flowing through the external cir-cuit must pass through each cell so connected, Fig. Ill,requiring, therefore, a certain fraction of the total E. M. F. toovercome the resistance of each cell. TO FIND THE TOTAL INTERNAL RESISTANCE OF A NUMB&HOF SIMILAR CELLS CONNECTED IN SERIES :… … Fig. 111.—Eight Cells Connected in Series for Prawire.The pressure is eight times that of one cell, as is also the total internal rebalance. Prob. 42 : Ten Daniell cells, with an internal resistance of 2 ohmseach, are connected in series. What is the total internal resistance ?By Formula (36) total…
