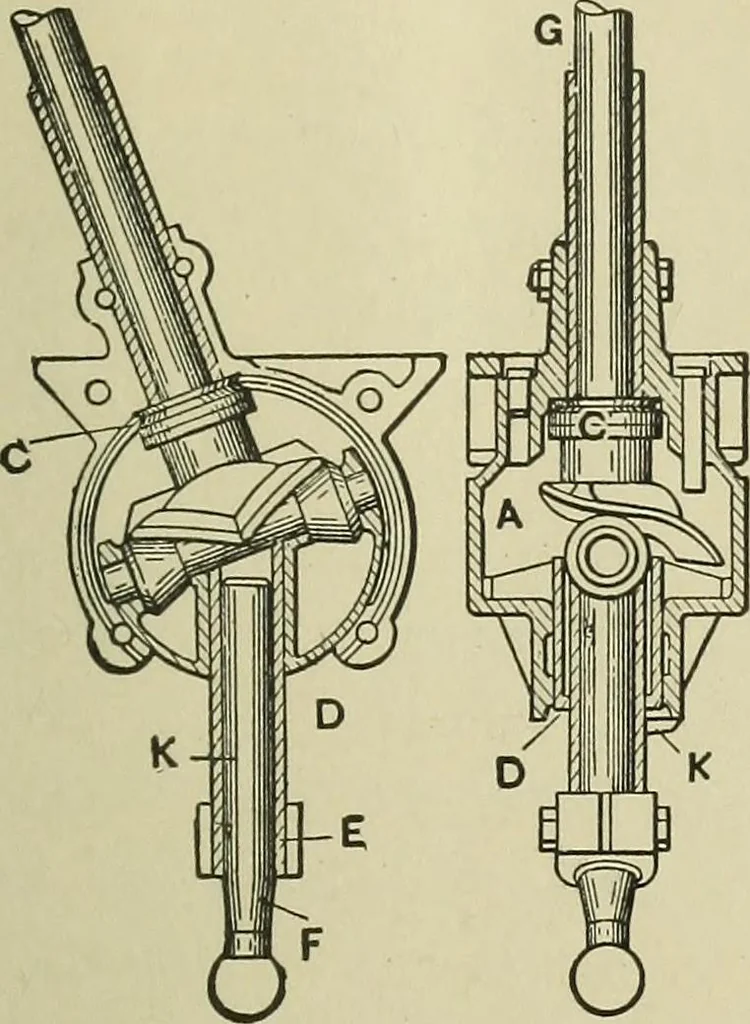

ROAD AND VEHICLE DEVICES, ETC. 213 … 542. AUTOMOBILE STEERINGGEAR. A curved and eccentricallymounted cam plate on the handle shaftrevolves against roller arms of the hollowshaft K, moving it forward or back-ward in the socket and sheath D, E.The socket-head spindle, F, accommo-/ dates difference in length by sliding inthe sheath K.…
