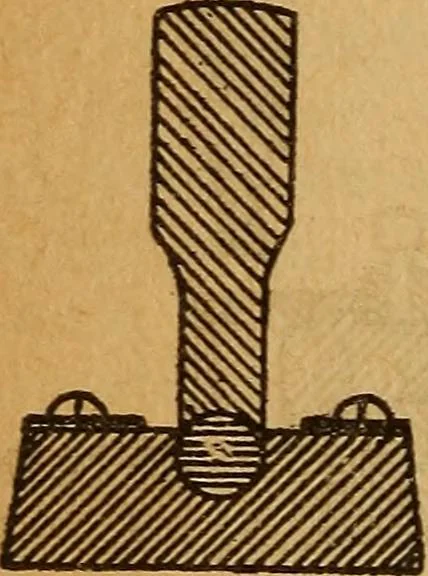

is a view of a commonform of drawing die for deep work.They are used for making caps, cart-ridge cases, etc. It consists of around disk of steel about 7/^ deepwith a hole the size of shell required bored in it. This hole is well rounded off at the corner, and counter-Dored from the bottom with a… … Fig. 4.
