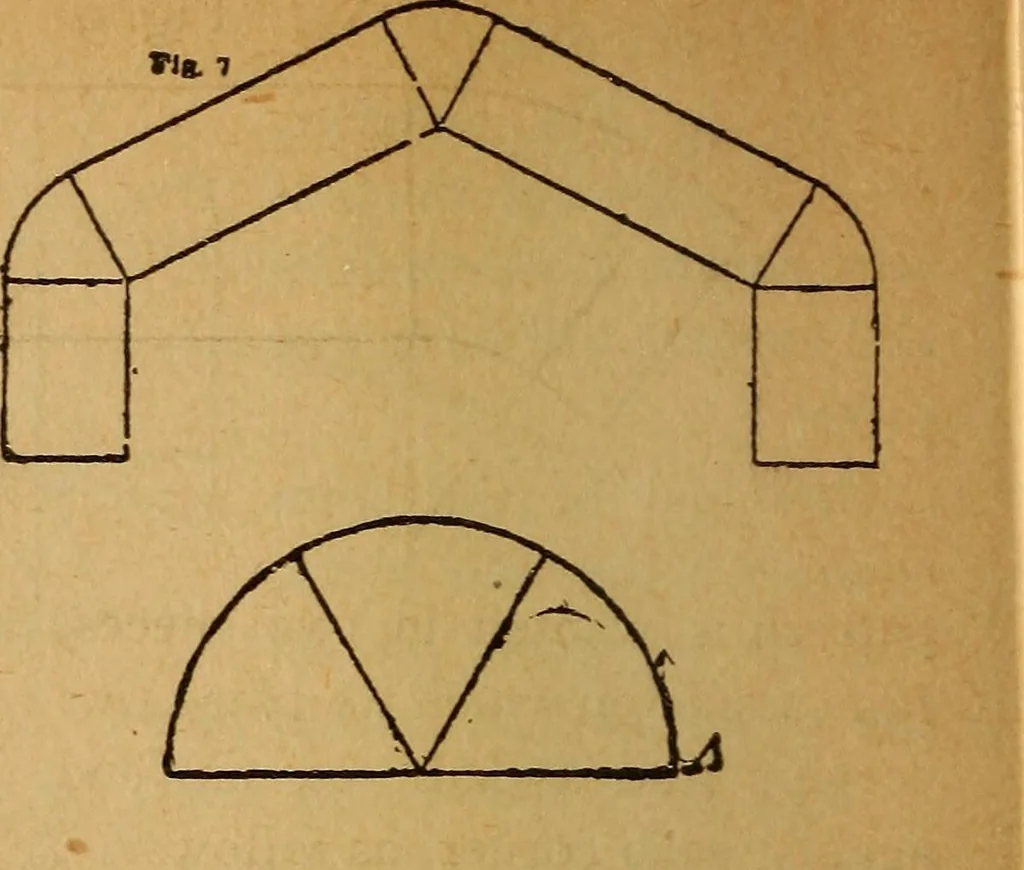

378 sides will be the same size as required to make the square dishonly the pattern C, Fig.5, will be required to bedivided into three partgfor each corner of thetriangle. Fig. 6 is aground plan of bottomof dish. We willcut thispattern in one piece bymarking off one of therides, and then… … A, Fig. 7, to eachside, until we haveused the three sidesand three cornerpieces. The next step willbe to cut the patternof a flaring oblongdish, top and bottomhaving round cor-ners, of which Fig, 2will be a side viewand A, Fig. 8, theground plan. If the side and endpieces in A, Fig. 8,were removed,…
