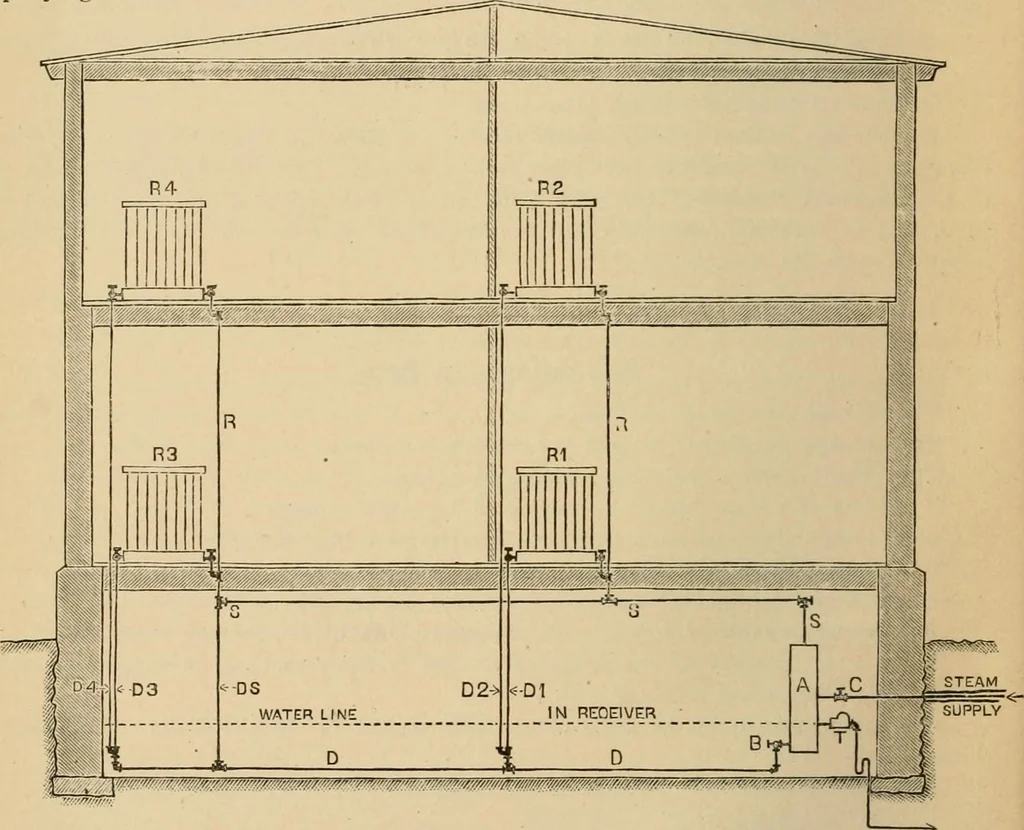

such cases more skill is required to make a system which willwork well and give no trouble. This, however, can always be done, if sufficient care isbestowed upon the design and execution of the work. We give an illustration of a sys-tem put in where the distance, location, and low pressure of steam… … TOSEWEfi The receiver, A, may be a common kitchen boiler, or it may be made of a piece oflarge pipe with its ends capped. The main pipe from the boiler, wherever it may belocated, enters it as shown by the pipe marked steam supply, and discharges the steamand its water of condensation directly into…
