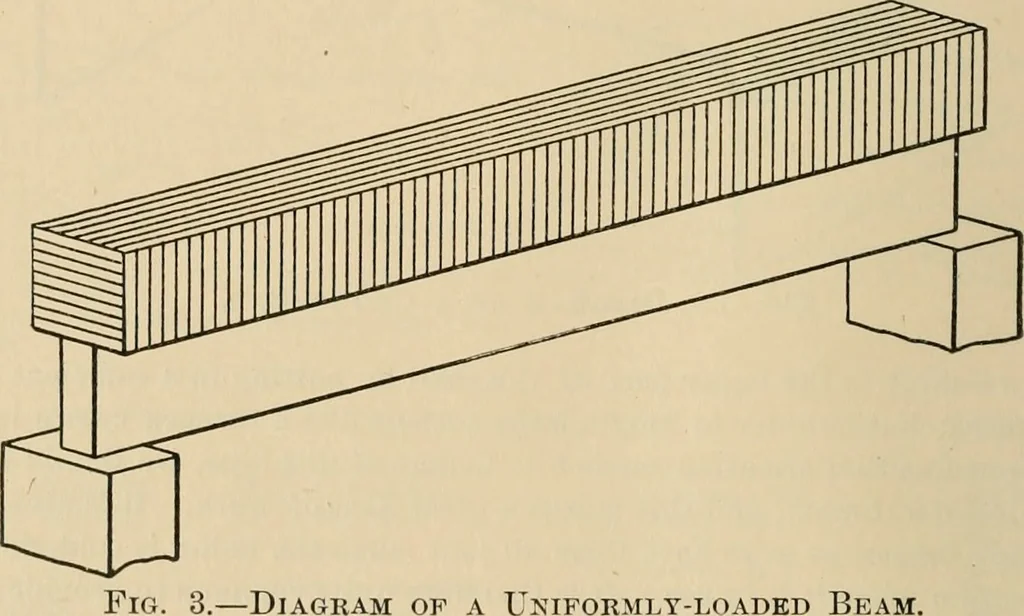

ese bars, strictly speaking, are like beams that are loaded ata considerable number of points, all equally distant from one another. But it is notnecessary, in practice, to take account of the precise way in which the load comes uponthe bar; for since the crown-sheet bolts are equivalent to… … Diagram of a Uniformly-loaded Beam. its load were uniformly distributed from end to end, as suggested by the shaded massin Fig. 3. We shall therefore calculate the strength of the crown-bar as though itwere a beam whose load is uniformly distributed, from end to end. Having thus disposed of the…
