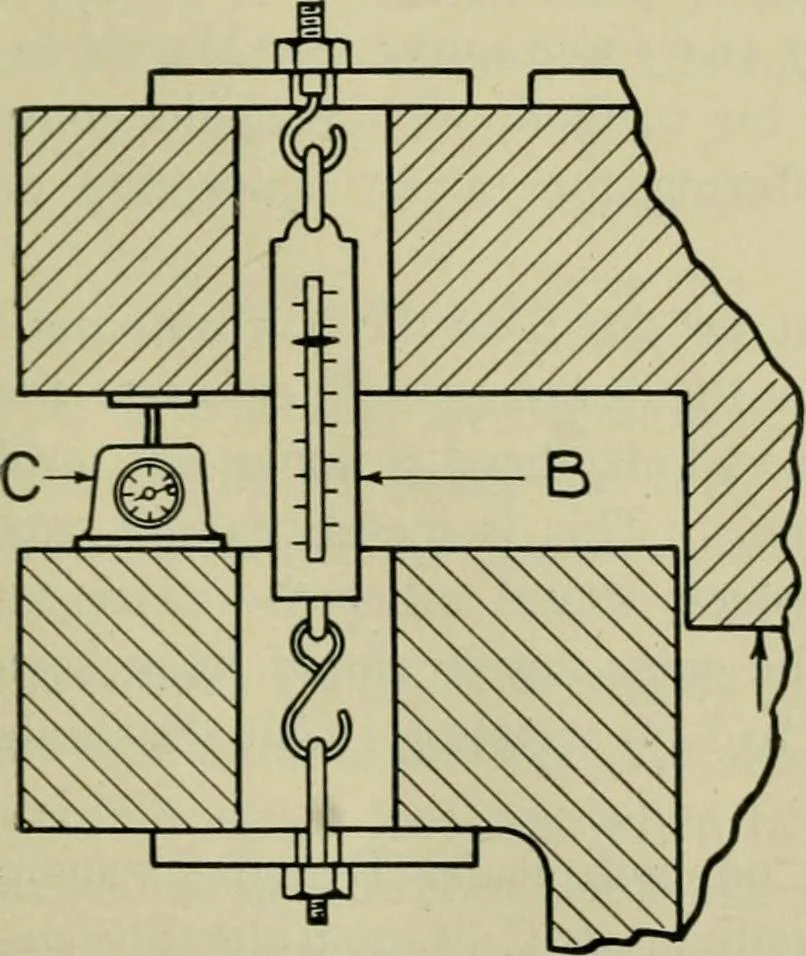

. This represents thetension in the cord. Now place the10 lb. weight on the scale pan. Itwill be seen that the tension in thecord is reduced to 15 lbs., but thescale reading remains unchanged. Likening this to a bolted joint,the spring represents the bolt, thecord represents the plates joined bythe… … Fig. 2. g(j THE LOCOMOTIVE. [July, wt.) did not increase the tension in the bolt (spring balance). On the other hand, let us see what happens when we have an elasticjoint, as when a gasket is interposed. For this we will use the ap-paratus shown in Fig. i except that the incompressible blocks will…
