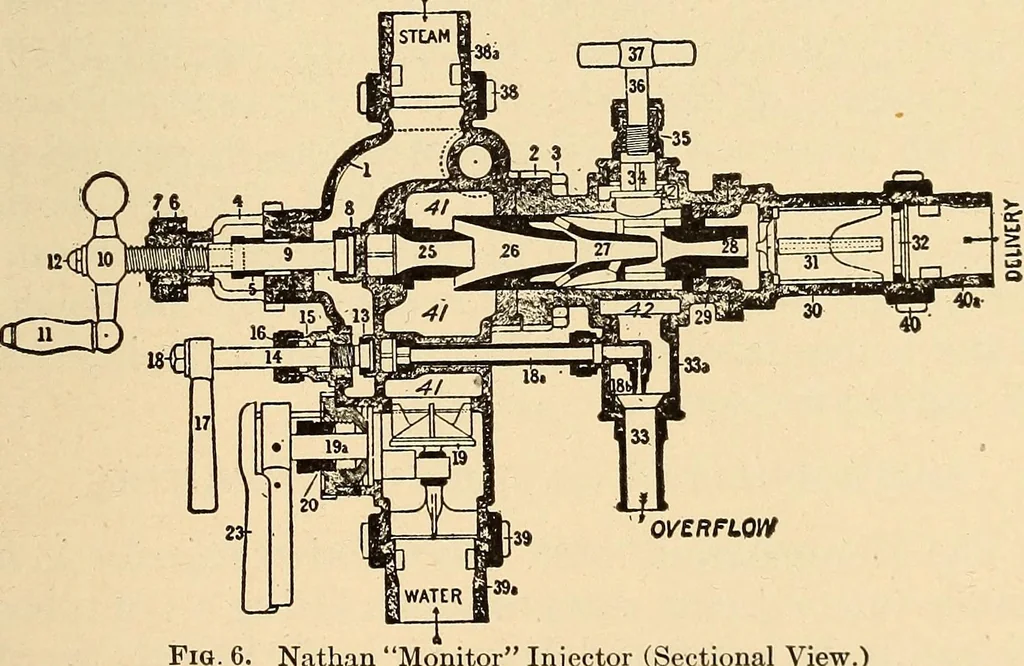

LOCOMOTIVE APPLIANCES. 151 In starting on high lifts and in lifting hot water,pull out the starting lever slowly. To start the injector, pull out the lever; to stop,push in the lever. NATHAN MONITOR INJECTOR.While this type of injector is not of such recentdesign as the Simplex there are a great… … OVERFLOW Nathan MonitorLIST OF 1. Body (back part). 2. Body (front part). 3. Body Screw. 4. Yoke. 5. Yoke Gland. 6. Yoke Packing Nut. 7. Yoke Lock Nut. 8. Steam Valve Disc and Nut. 9. Steam Valve Spindle. 10. Steam Valve Handle. 11. Steam Valve Rubber Handle. 12. Steam Valve Top Nut. 13. Jet Valve…
Locomotives
