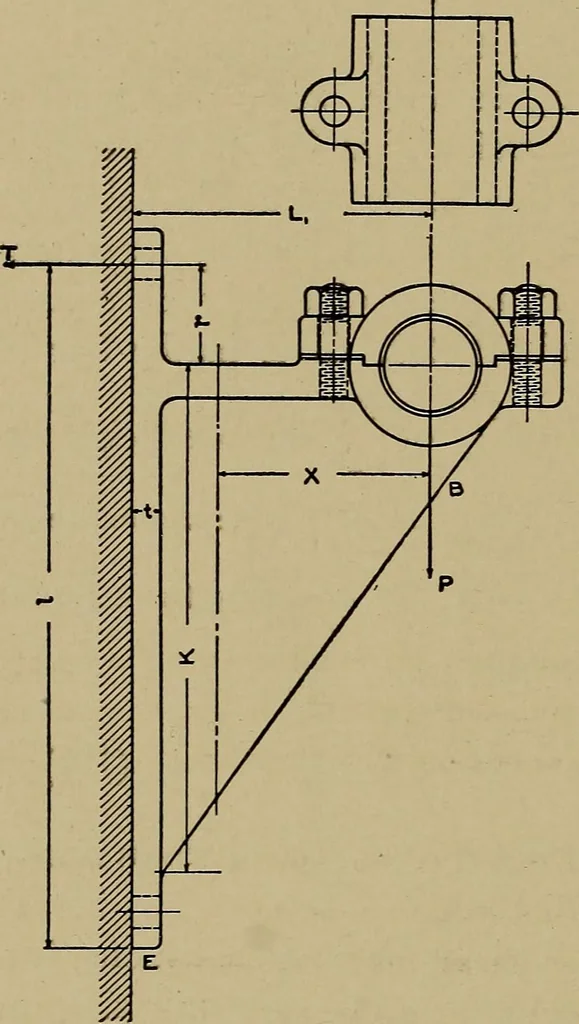

ctional share of the whole load P. This 2is difficult to guarantee, and it is safer to consider that ~rrP may be taken by the bolts on one side. On this basis, assuming a total num- 152 MACHINE DESIGN ber of bolts n, and equaling the external force to the internal resistanceof the bolts P = Snd. 41… … £1 m & & Fig. 86. Wall Bearing point, and Sa the safe shearing stress, then, equating the externalforce to the internal shearing resistance, P = ,43, (121) The same shear comes on all parts of the bracket to the left of theload, but there is an excess of shearing strength at these points.…
