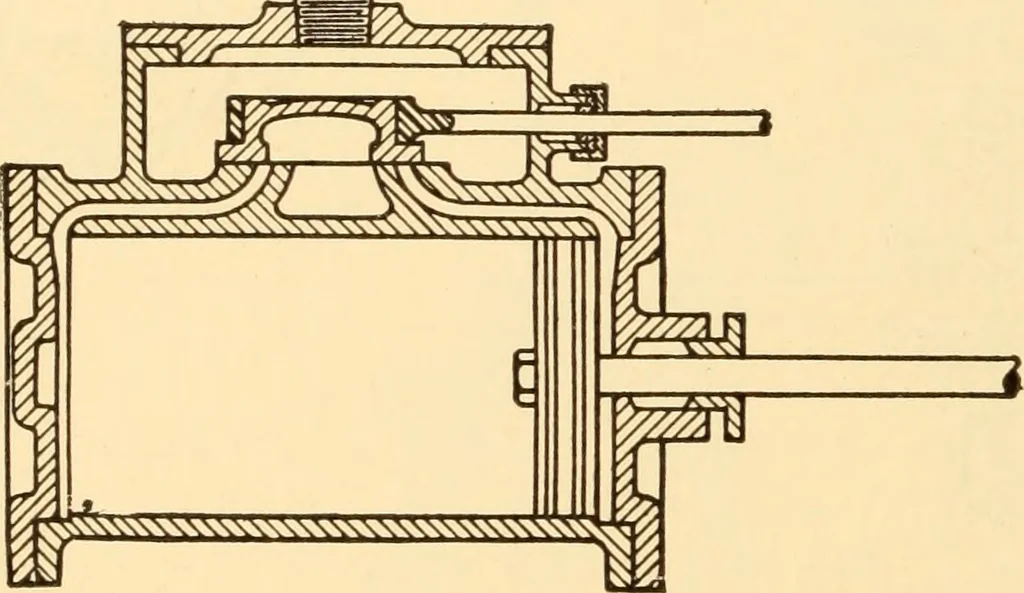

twhich cuts off the supply of steam to the cylinder. It will beseen from this figure that the piston has still some distance togo before completing its forward stroke. Figure 5 shows theposition of the valve and piston at cut-off. The valve continuesto move towards the left, keeping the steam port…
