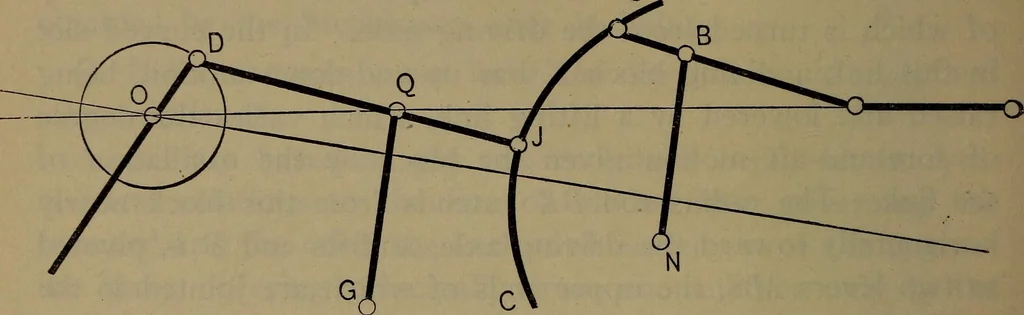

outline in Fig. 169. The radius rod is moved up and downby a bell-crank lever. O is the driving axle, OR the crank,and D the eccentric, 1800 from the crank: that is, directlyopposite it; the sheave being fastened immovably to the linkCC. A sustaining arm GQ is pivoted below, at G, at such a 272… … G(JFig. 169. Fink Valve Gear. it is raised and lowered in the link slot by a bell-crank lever,fastened to a lifting link. The dead-point in the link is at J;the direction in which the engine runs depends on whether theblock is above or below /. The distance of the block fromthis dead point covers…
