Valve setting: simple methods of setting the plain slide valve. Meyer cut-off. Corliss. and poppet types (1908)
Collins, Hubert Edwin, 1872- · New York [etc.] Hill publishing company · leaf 82

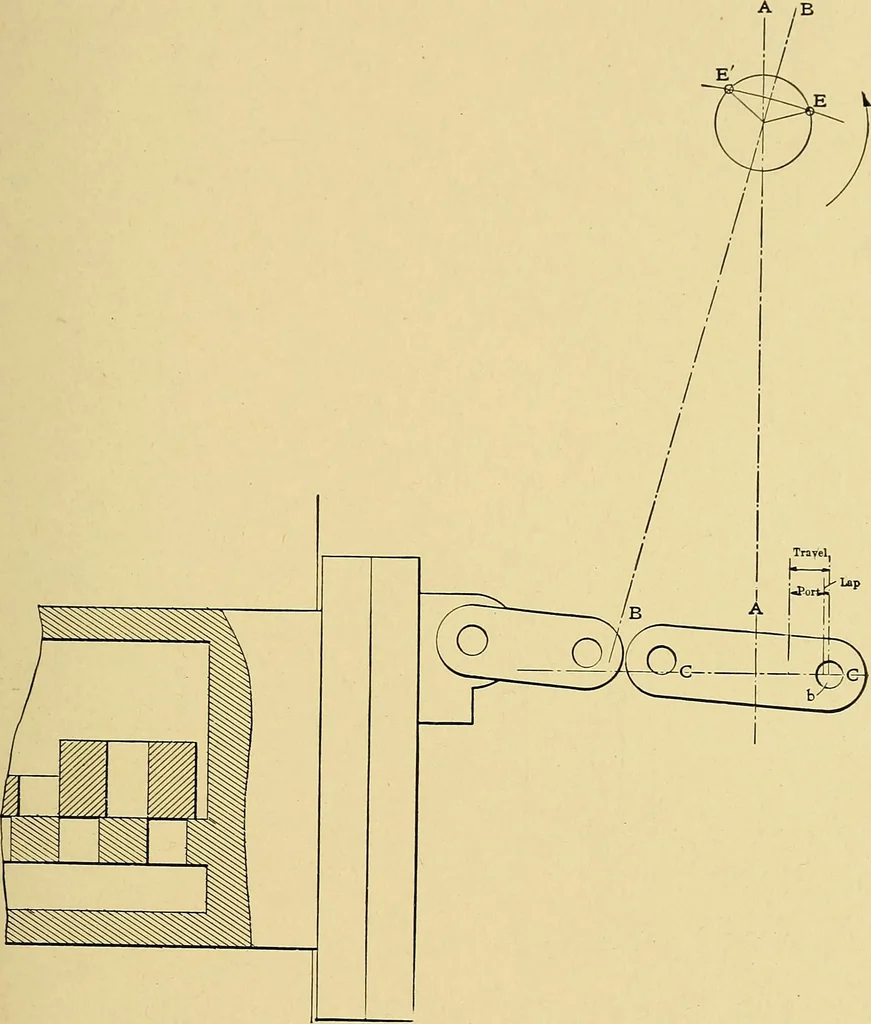

and stem in this direction. In Fig. 71 the eccentric has reached the point E, the top center of itstravel, and the toggle stub end the same, but the point b has come back onits travel, as well as the valve, until they nearly open again. The eccentric THE GREENE-WHEELOCK ENGINE 71 continuiiig until… … FIG. 70. It will be seen by this that the valve moves four times between thepoints of closure and opening, which is a distinctive feature of this valve. 72 VALVE SETTING Conditions to be Avoided There are some general conditions which if they existed on this valvegear would cause trouble, and it is…
