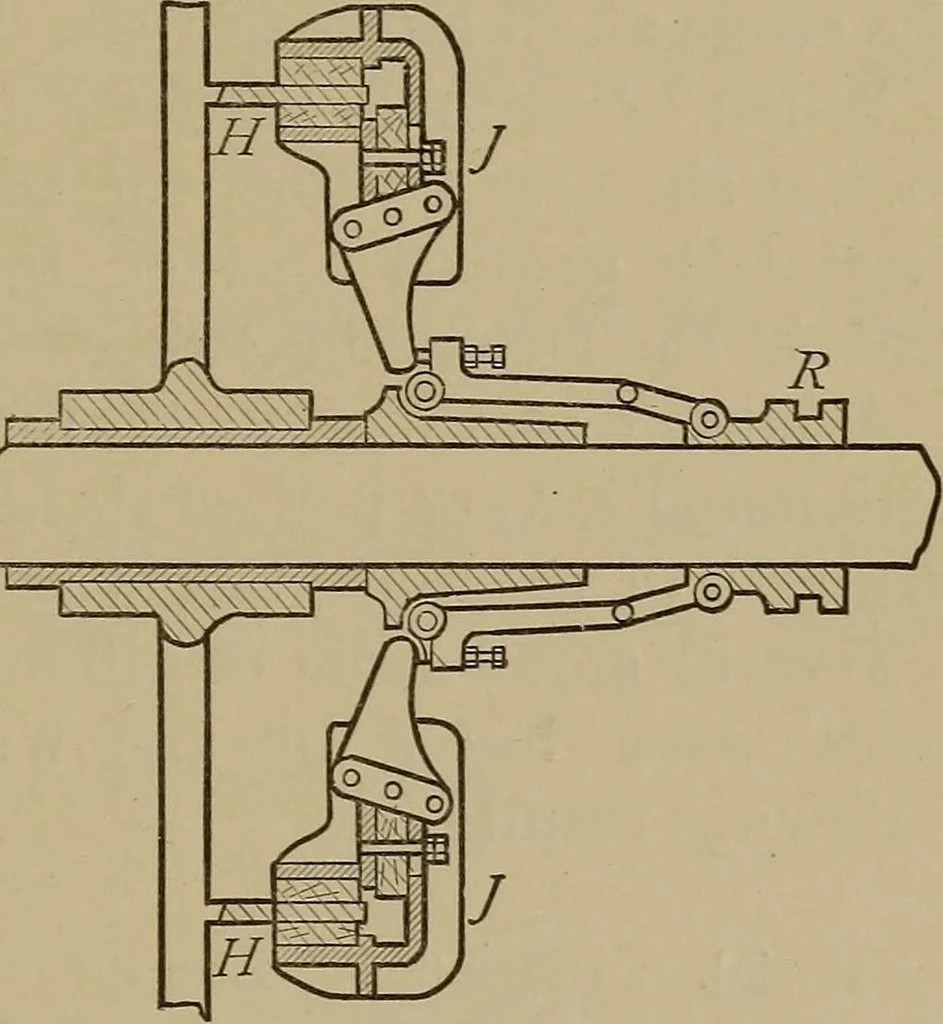

mod-erate quantities ofpower. As shown in thefigure one memberis attached to a loosepulley on the shaft,but this same typecan be used for con-necting two in-dependent shafts. The ring or hoopH, finished insideand out, is grippedat intervals by pairsof jaws J J having wooden faces. These jaws are… … Fig. 62. 138 MACHINE DESIGN. occupy considerable room in proportion to their trans-mitting power. The Weston clutch is preferable forheavy loads. The roller clutch is much used on automatic ma-chinery as it combines the advantages of positivedriving and friction engagement. A cylinder on…
