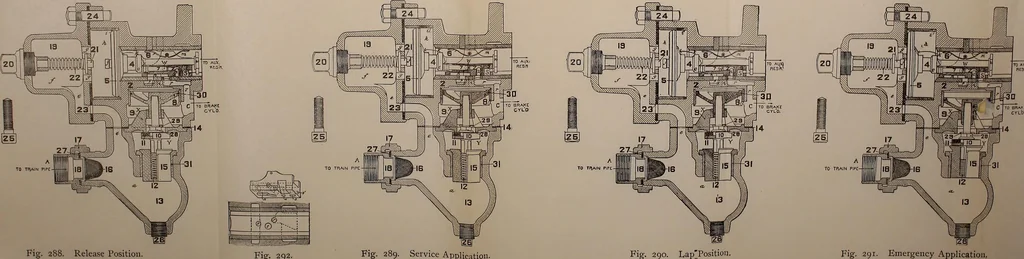

</2 PIPE TAPTO TRAIN LIN? Fig. 294. New Style Plain Triple Valve, Lap Position. a longer and more sudden stroke, establishing connection be-tween the auxiliary and the brake cylinder direct; the emerg-ency valve 10 opens and lets all the pressure escape from thecavity Y, so that the train-pipe… … Fig. 288. Release Position. Fig. 292. Service Application. QUICK-ACTION TRIPLE VALVE. Fig. 290. LapPositicm, Fig. 291. Emergency Application, TRIPLE VALVE. 441 Q. What about releasing the brakes after an emergency?A. With quick-action triples they are harder to let off thanin service applications…
