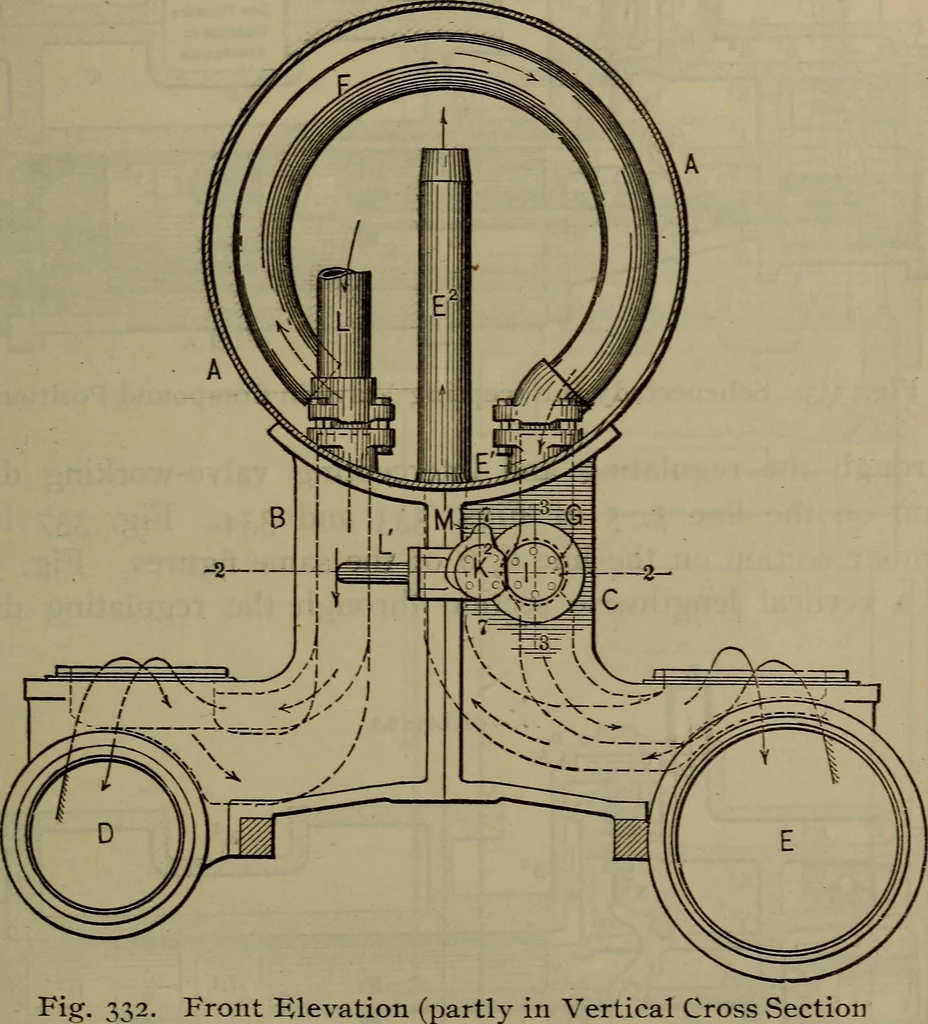

front elevation, partly in vertical crosssection, showing the cylinders, their saddles, the smoke-box,the reservoir, intercepting valve and steam passages; Fig. 333 THREE-CYLINDER COMPOUNDS. 523 is a horizontal cross section through the intercepting valveand other valves relating thereto on the… … ^32. Front Elevation (partly in Vertical Cross SectionSchenectady Compound-ing valve is closed. Fig. 334 shows a vertical lengthwise sec-tion through the intercepting valve on the line 4, 4 of Fig.335, with the valve open; this figure being also a section onthe line 3, 3 of Fig. 332. Fig. 336 is a…
