Locomotive catechism; an up-to-date, practical and complete work on the locomotive--treating on the design, construction, repair and running of all kinds of locomotives .. (1908)
Grimshaw, Robert, 1850- [from old catalog] · New York, The N. W. Henley publishing company · leaf 724

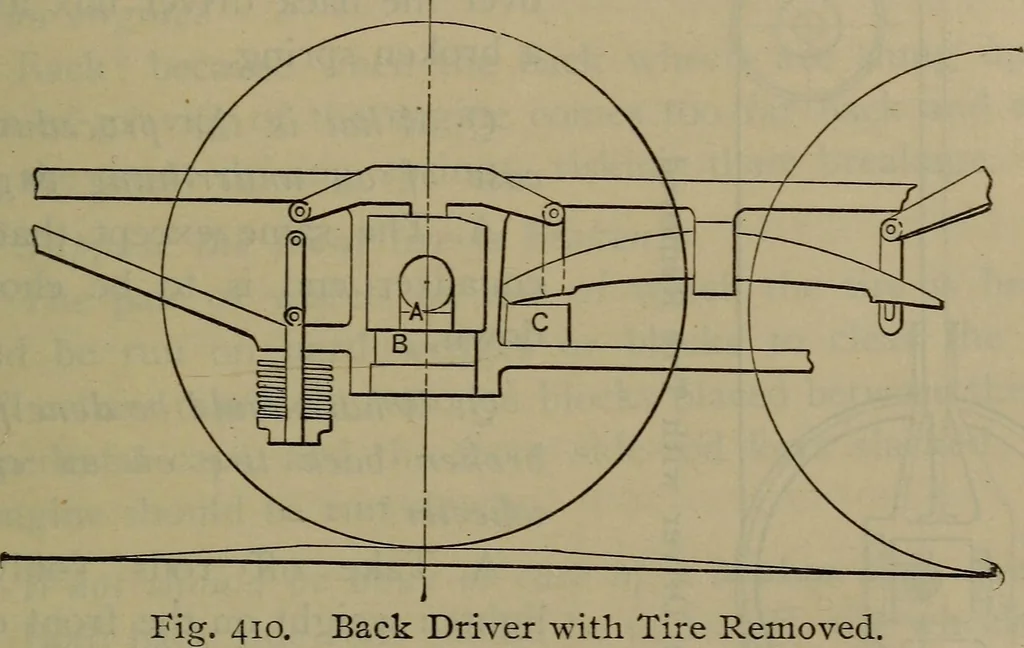

ved. Q. What should be done in case of a broken main-drivertire on a ten-wheeler or a Mogul? ACCIDENTS TO TIRES. 709 A. Run the wheel up on a wedge; with a hard block,C, chock the back end of the short equalizer and the front endof the back spring; remove the pedestal brace and replacethe oil… … Back Driver with Tire Removed. Q. What is to be done for a broken back tire on a ten-i^heelcr, where the main wheel is blind? A. Run the damaged wheel up on a wedge, replace the oilcellar by an oak block A with the grain lengthwise of thejournal, chock in with another wooden block, B, between…
