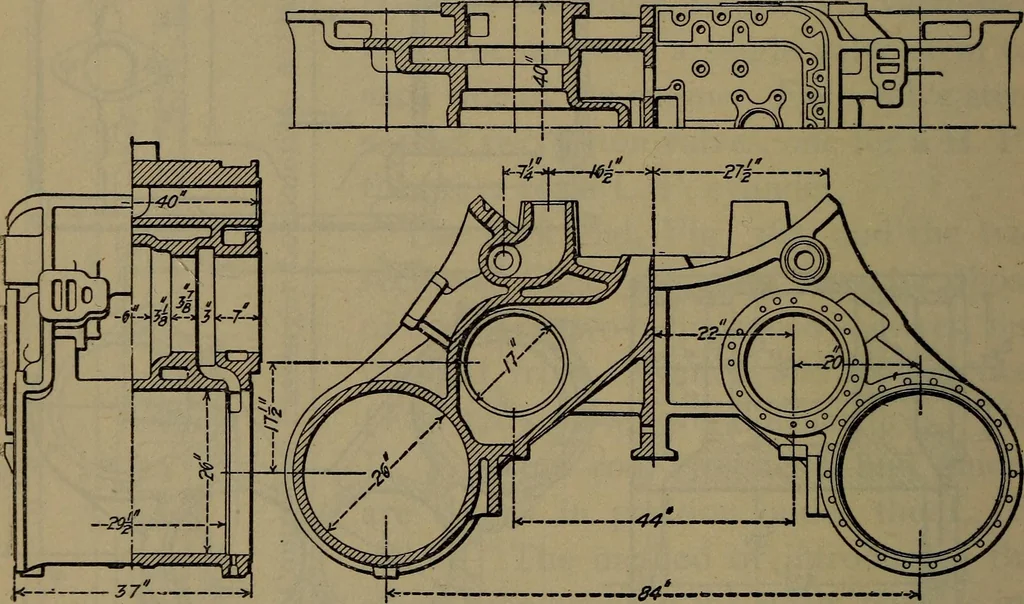

ig. 373 shows the L, P. cylinders, cast separately and bolted 562 LOCOMOTIVE CATECHISM. together; their insides are faced off to embrace the outer barframe faces. The L, P. piston-valve chamber is in directlinebetween the cylinder and the exhaust base. Here is seen theseat for the back ends of the… … Fig 373- Low-Pressure Valve-Chamber Sections. the L. P. cylinders to the exhaust nozzle, and the starting-valve chambers. The H. P. cylinders are shown in Fig. 374 as t»hey wouldappear in section revolved into the same plane. The H. P.valve is arranged for central admission, the L. P. for…
