Locomotive operation; a technical and practical analysis (1904)
Henderson, G. R. (George R.), b. 1861 · Chicago, Railway Age · leaf 103

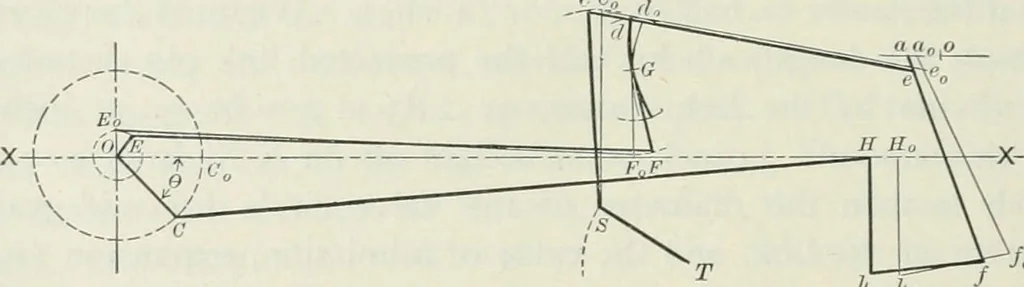

ions, we find that thecut-off has been shortened an amount e e, the lead increasedyl inch and the compression increased by an amount of strokec c. Diagrams like this can quickly be constructed for variousamounts of lap and valve travel, and form a ready solution ofsuch problems. As stated above,… … / //„ Fig. 24. angles, using a tram equivalent to the length of the rod in thescale selected for the crank circle, and scribing from points onthe crank circle on to the axis X X prolonged; or the pistonlocations may be calculated as described in connection withFig. 10. The mathematical…
