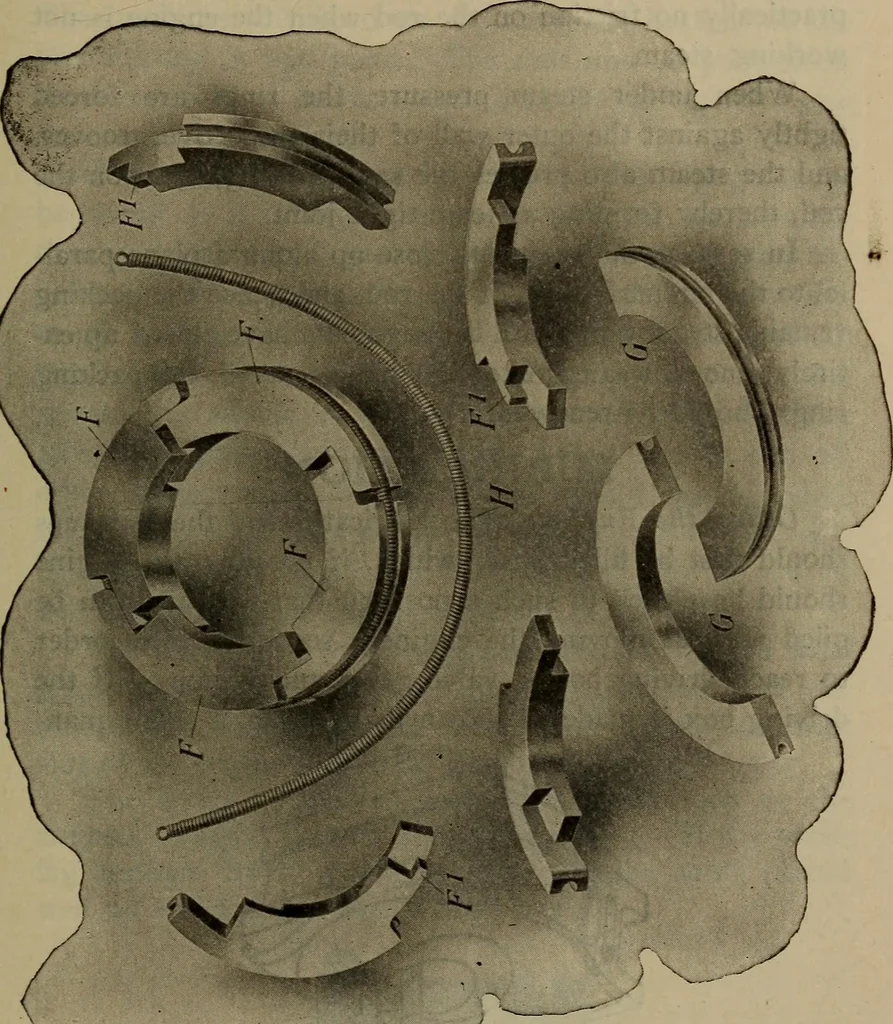

and D are bored only one-eighthinch larger than the valve-stem. Packing Rings. The packing rings F are made ofwhite metal of special composition, and are generally twoin number, consisting of four segmental pieces, each hav-ing broken joints arranged in such a manner that theyform steam-tight rings… … PLATE 45. sition by the retaining spring H, which however does notaid in making a steam-tight joint on the rod. General Information. Unlike most forms of pack- 158 LUBRICATION. ing, no heavy coil spring is used to secure a steam-tightjoint between the packing rings and the piston. This packing…
