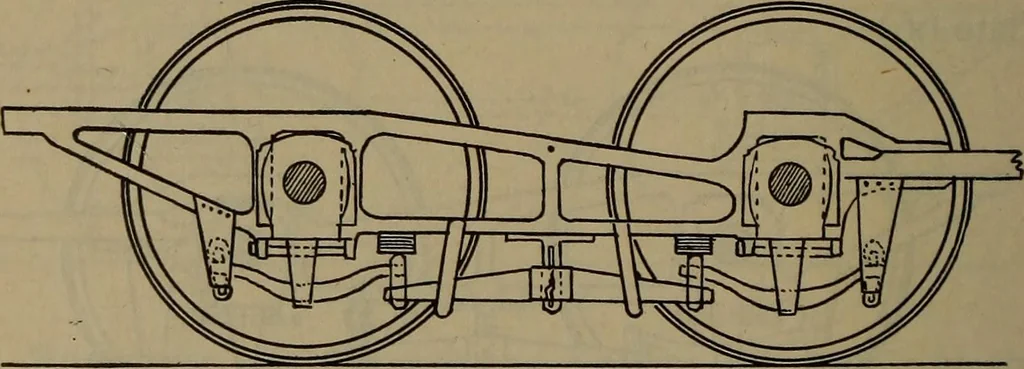

ck also placed between the for-ward end of the back spring and the lower rail of theframe. The forward driver should then be run offthe wedge, the back driver run on a wedge, a blockplaced between the back end of the forward spring andthe lower rail of the frame and the block removed fromthe top of… … PLATE 97. Back Hanger of the Back Spring with UnderhungRigging. If the back hanger of the back spring ofan eight-wheel underhung engine is broken, the backdriver should be run on a wedge, a block placed ontop of the front driving box, the back driver run offthe wedge. The forward driver should then…
