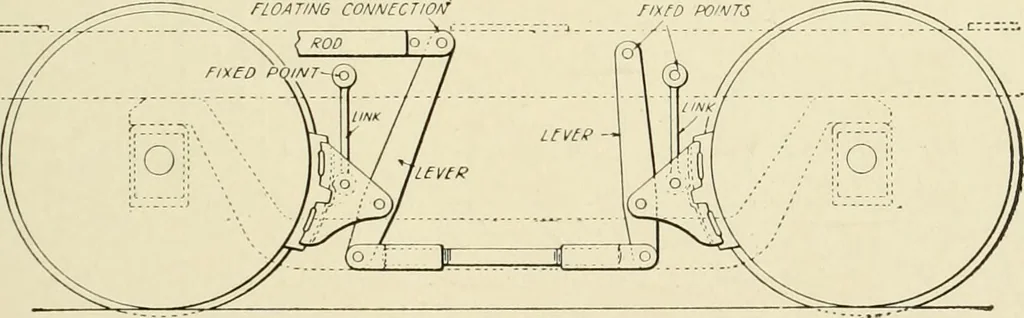

is the brake-shoealready illustrated under the subject of truck details. The brake-head and shoe is carried by a link or hanger as shown in Fig. 80,which supports the weight but leaves the head free to move in thedirection of the wheel radius. The head and shoe are pushed orpulled by a system of… … Fig. 80. Brake Mechanism, Showing Brake-IIcad, Shoes, and Hanger A simple brake rigging for a single-truck car is shown dia-grammatically in Fig. 81. The four brake-heads are shown, but thehangers are cut off for clearness. The two brake-heads for each pairof wheels are connected by a cross-bar B…
