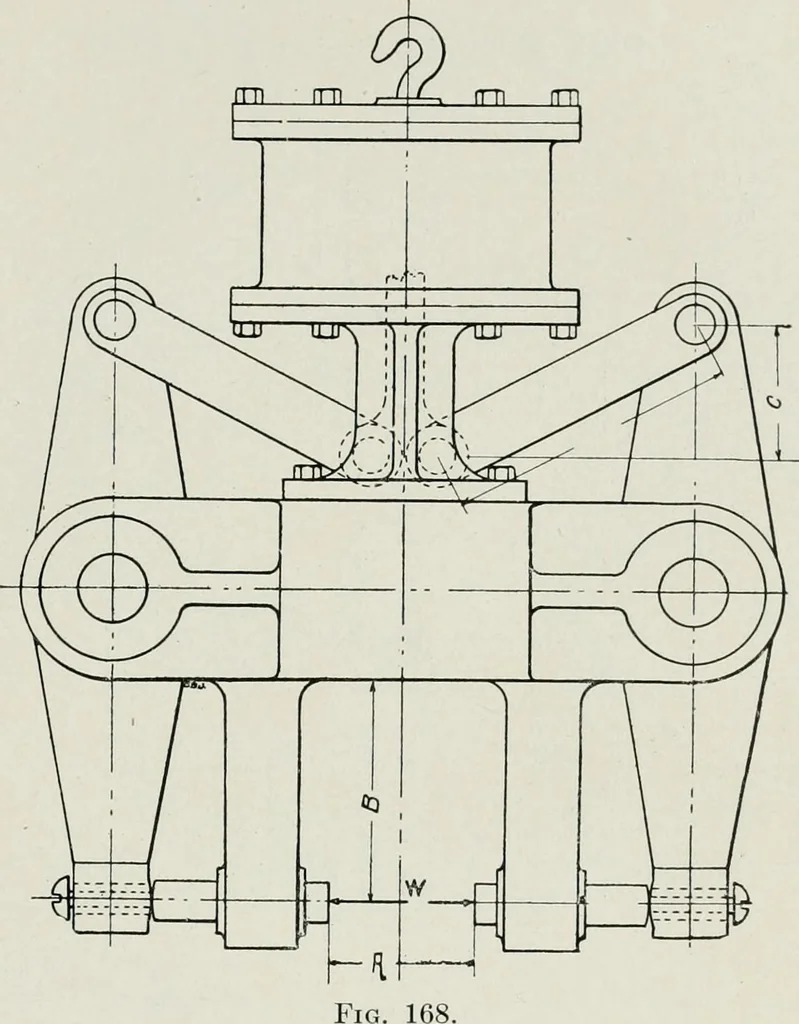

he dies (2 to 4) in. Assume the length of the arm of the scissors such that the forceto be transmitted through the toggle will not be so great as torequire too large a cylinder. Also observe that a long armrequires a long toggle link and hence a long piston movement.This style of machine is used… … MuDRiNG Riveter167. Assignment.— W = (25,000 to 100,000) lb. p = (air pressure, 80 to 100) lb. per sq. in. T =B = (8tol6) in. A = (5 to 8 in. C (min.) when S = dc?grees, Total^die movement (3 to 5) in. This design may be modified by having the cylinder enclosedwithin the base if desired. In such an…
