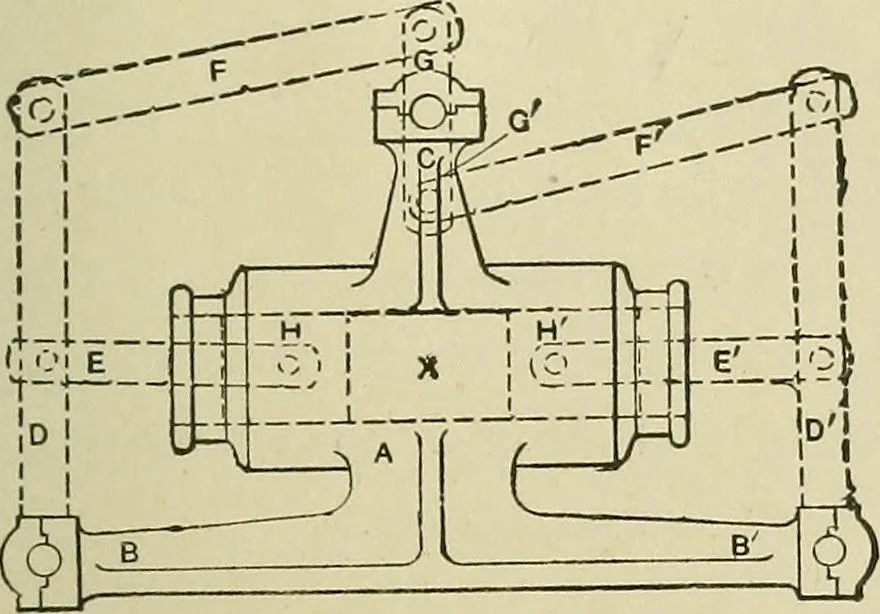

rinlet at 24, the air cock for starting at 19. The other parts are self-explained. EXPLOSIVE MOTOR POWER AND APPLIANCES. 117 272. BALANCED ENGINE. Explosive motor. Secor type. Thecharge is fired in the chamber X between the two pistons H H, whose motion is transmitted to the cranksG G, having equal… … 273. GASOLINE ATOMIZER AND VAPORIZER. Hay type. The exhaust is used forheating the walls of the va-porizing chamber by trav-ersing the annular cham-ber e. A fan, h, is revolvedon the spindle, J, by the in-rushing air and gasolinethrough the valve E, whichalso covers the gasoline in-lets on the face…
