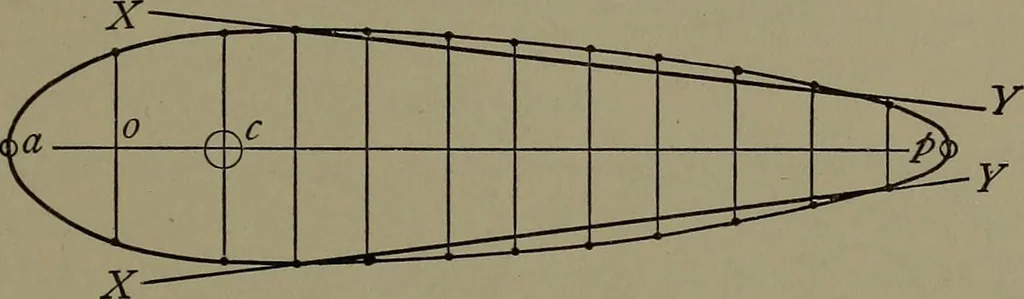

ed be taken between a and c, say at o midwaybetween. This diagram when completed will show the beam totake the form of a curve similar to Fig. 104. It may be foundconvenient, however, to approximate this curve with a straightline as x y. This would be satisfactory for strength and wouldbe more… … Fig. 104. construction. Some satisfactory design of handle or hub mustbe made at these points with sufficient size to carry the pins orbolts, each hub to have the sides and edges of the beam filletedinto it in a neat manner. See Plate C-3. A handle can beplaced at p for all loads of 300 lb. or less…
