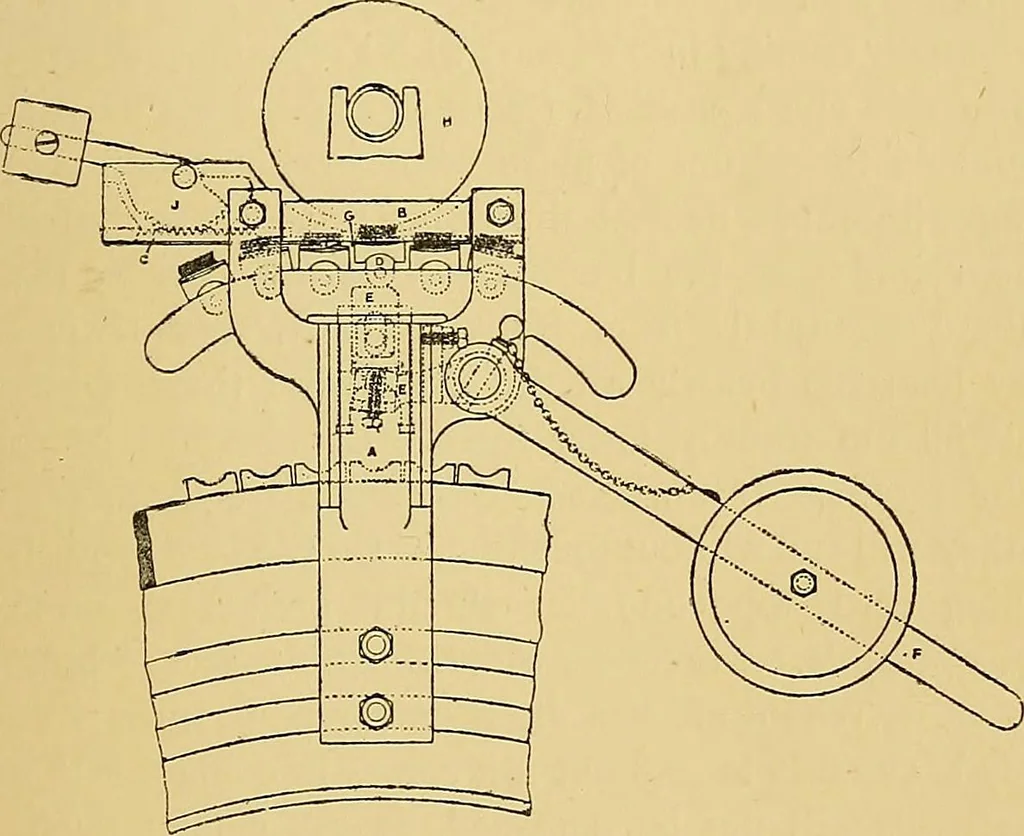

understood by means of thedrawing. To the grinding bracket, a, a grooved guide, B, is fixed, in whicha toothed bar, c, can slide. To the bottom of this bar is attacheda wedge curved to the radius of the flexible bend. The flats, d,are pressed with their working facings against this wedge, by… … Fig. 9.—Card-Grinding Motion. passed under the grinding roller, h. The flat, in its forwardtraverse, comes into contact with an incline, attached to the back ofthe guide, b, which presses the flat down and so releases the wedge,and, by means of the wedged toothed segment, j, it is returned toits…
