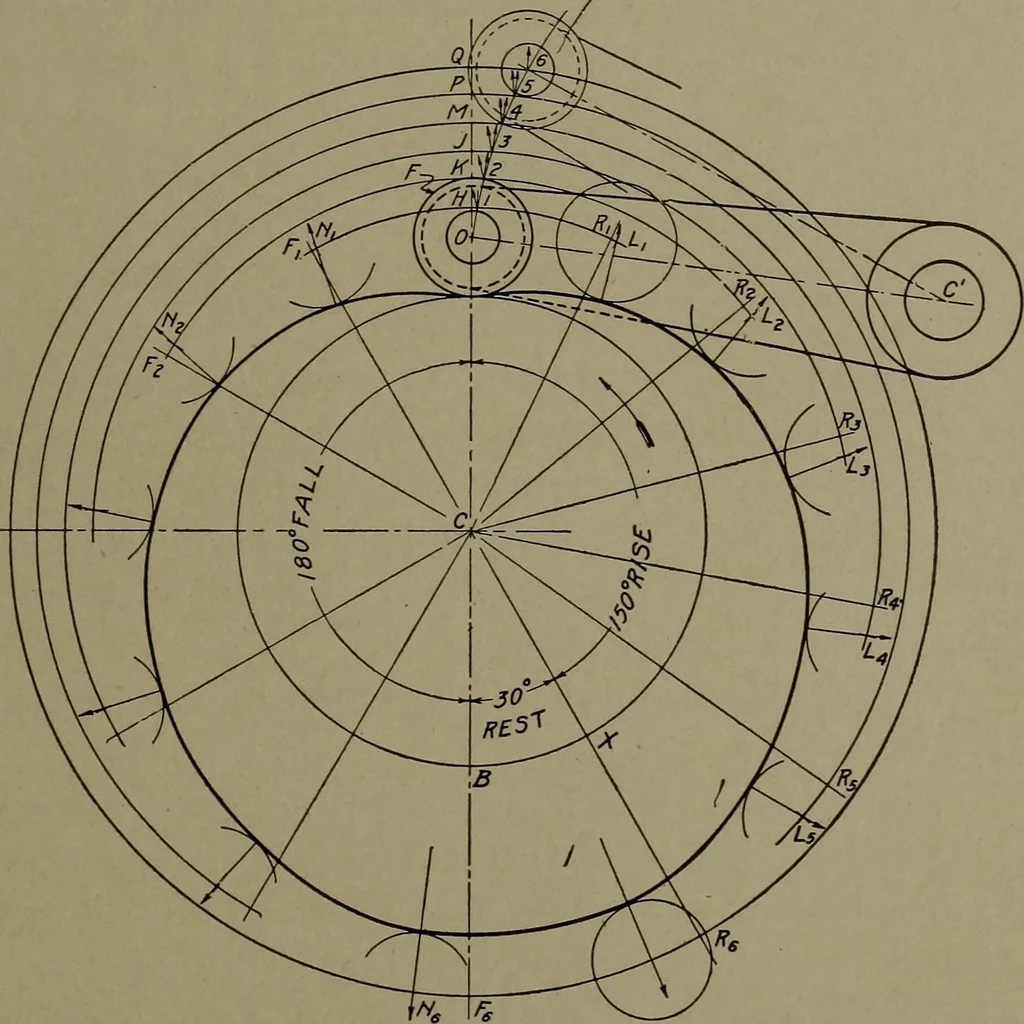

center of thecam C with the center of each roll; measure the angle which the lineof pressure makes with this radius; and then transfer the angle to theproper point on the line of travel. This method is clearly indicatedin the figure. As before, it will be seen that the line of pressure lies quite… … Fig. 83. Diagram of Cam with Roll Follower on Oscillating Arm instead of traveling in a straight line, it is made to travel along thearc of a circle, being carried on the end of an arm OC, C being afixed point about which the arm oscillates. The length of travel 06is the same as before, and is…
