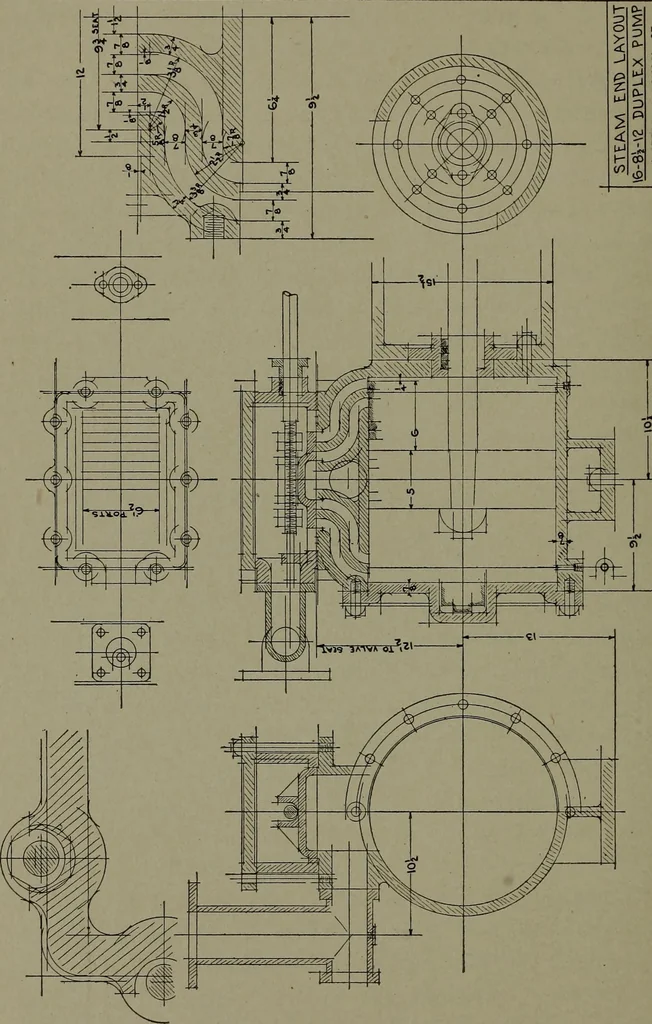

steam pump may well precede thatof higher forms of the steam engine. It is hoped that the study willso interest the student that he will be led to further investigationand development not only of the steam engine itself, but of thathighly important division of modern engineering—pumpingmachinery.… … 0- > 3 o u- _J u X o r. -j _J u 0- z. o 3 r o- o P <c DCIX O O 4. ~*» uj OJ <t a. <i> o MACHINE DRAWING 165 Rating of Pump. A steam pump is rated by the bore of itscylinders and length of stroke, all being given in inches. A16X8|X12 pump means that the steam cylinder is 16 inchesin…
