Machine drawing, a practical guide to the standard methods of graphical representation of machines, including complete detail drawings of a duplex pump and of a direct-current generator (1920)
Griffin, Charles Lewis, 1867- [from old catalog], Adams, Charles Clyde, 1882- [from old catalog] joint author · Chicago, American technical society · leaf 55

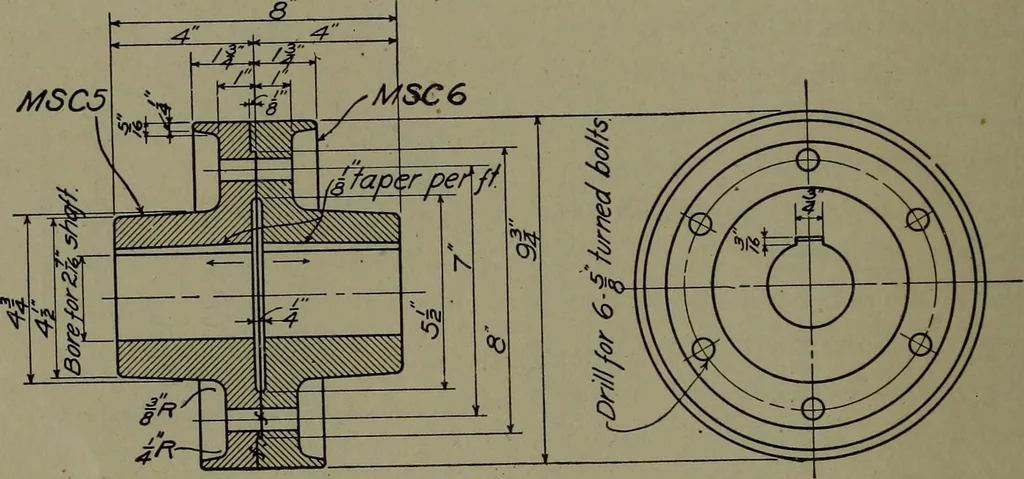

On this drawing are indicated the patternnumbers. They would be equally necessary on all other castingsillustrated in this book; but for purposes of simplicity they havegenerally been omitted. Pattern numbers are necessary, not onlythat the patterns may be filed away systematically, and… … 2% Flange Coupling - Steel Casting2 - remale - MSC 6. Ship with shcrff MS/7.2-Male - MSC<5. • * * f&S. Fig. 36. Detail Drawing of a Coupling, Using a Cross-Sectional View certain letters or numbers are given them, such that the identifica-tion is as complete as with castings. Castings,…
