Machine drawing; a text and problem book for technical students and draftsmen (1921)
Svensen, Carl L. (Carl Lars), 1884- · New York, D. Van Nostrand company · leaf 157

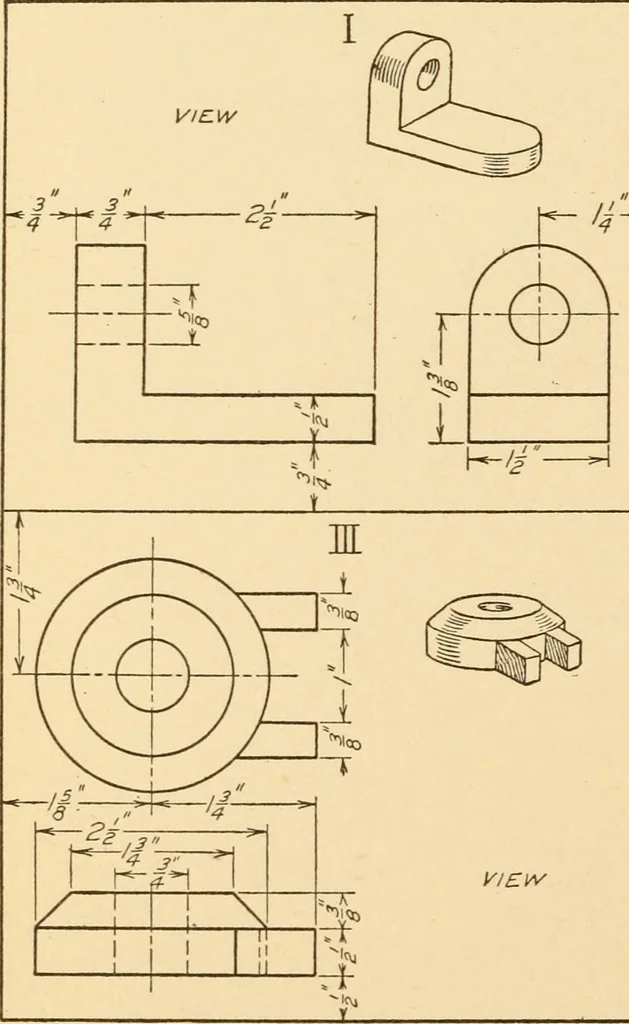

CE. Lay out a sheetwith 11 X 14 working space (Fig. 234). Make a three view working drawing. Planthe arrangement and spacing of views by making a freehand sketch which should besubmitted to the instructor. PROB. 14, Fig. 242.—The picture shows a SADDLE PIVOT. Lay out a sheetwith 11 X 14 working…
Machinery
