Machine drawing; a text and problem book for technical students and draftsmen (1921)
Svensen, Carl L. (Carl Lars), 1884- · New York, D. Van Nostrand company · leaf 178

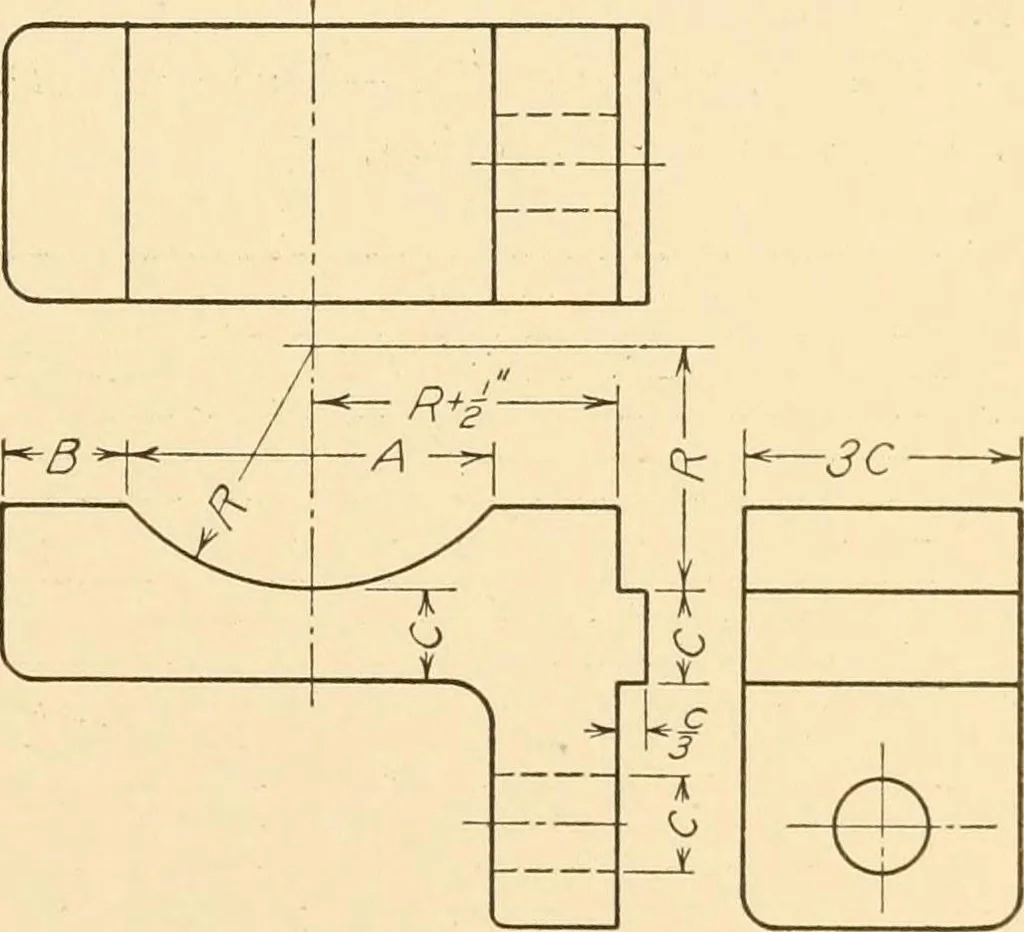

imension, as shown for A and G.Scale your chart and fill in the table withdimensions for each size. Indicate the di-mensions by letters, on the views of a con-venient size as shown. Derive a formula forone or more dimensions as directed by yourinstructor. PROB. 82, Fig. 277.—Make a graphicalchart,… … Fig. 277. A = ^12R - R -7, R 3 J5 = - + - 4 4 C = -B. 168 MACHINE DRAWING
