Machine drawing; a text and problem book for technical students and draftsmen (1921)
Svensen, Carl L. (Carl Lars), 1884- · New York, D. Van Nostrand company · leaf 181

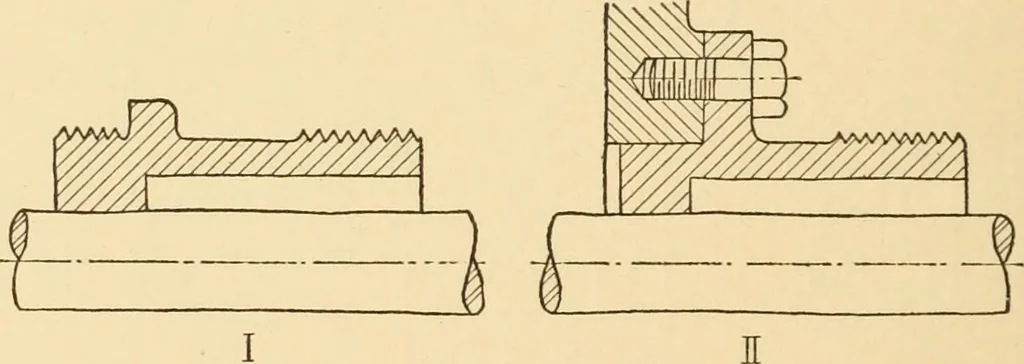

e a complete working drawing of the CROSSHEADonly. Show complete top, right end, and left end views in section. PROB. 89, Fig. 282.—Make a drawing for a glandstuffing box—either plain orbrass fined. Give completedimensions for gland, box,and studs. Diameter of rodas specified by instructor.Study…
