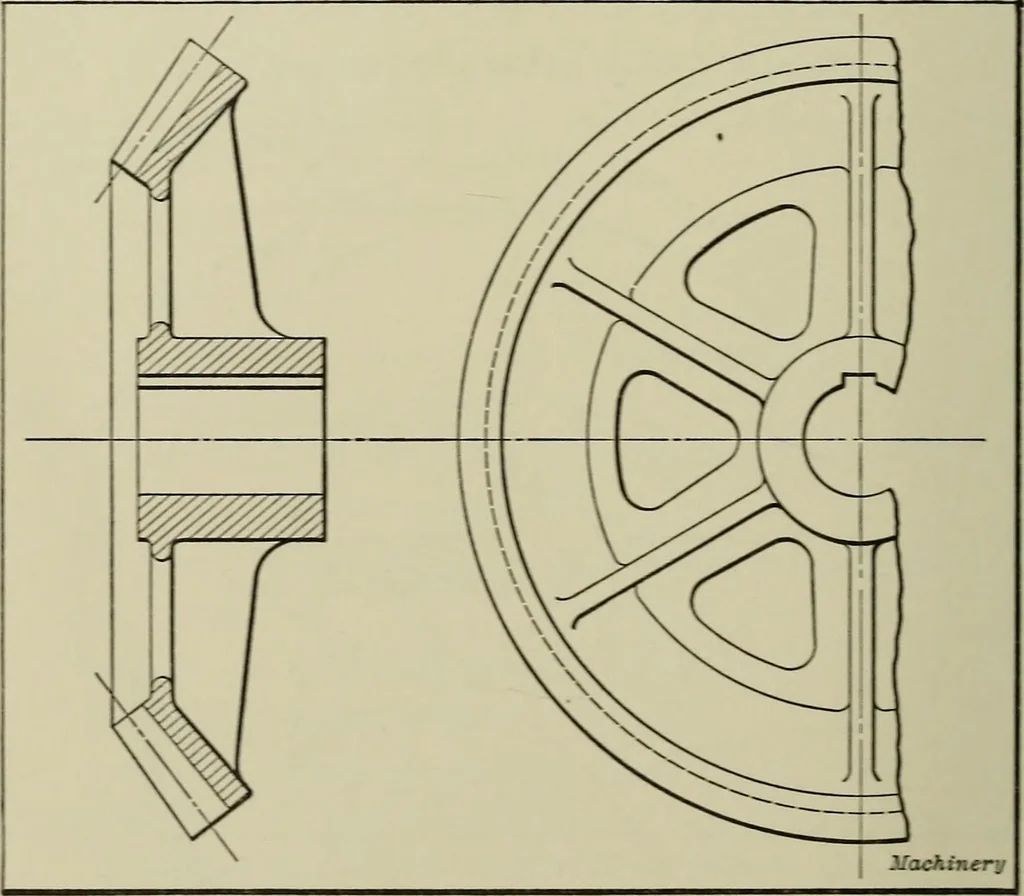

in accordance with the principleof moments. (See ]\Iachixzry5 Handbook, pages 338 and 339.)The pressure on each bearing resulting from the gear action, ascalculated above, must be combined by the parallelogram offorces in the same way as shown in Fig. 5 with any other pressuresarising in these… … Fig. 6. T-ann Style of Bevel Gear for Heavy Work the appHcation of the calculated dimensions, the determinationof the factors left to the judgment, and the recording of the designin the drawing. Bevel Gear Blanks. — Various forms may be given to theblanks or wheels on which bevel gear teeth are…
