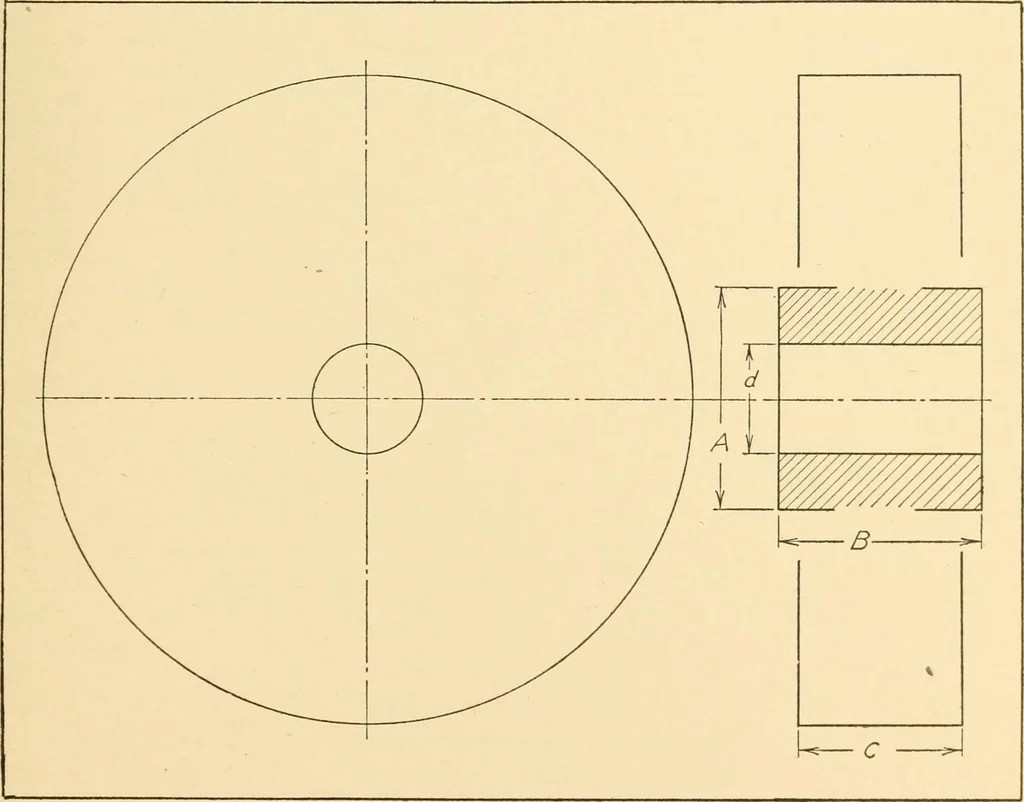

scale shown on the figureby method described in Art. 194. The sketches of Fig. 293 will help in reading Fig. 189. PROB. 108, Figs. 188 and 189, Chap. IX.—Make a working drawing showingeach of the details of the jig separately. Obtain dimensions as described in Art. 194. GEARS AND CAMS200. The… … Fig. 294. Probs. 110 to 119. 175 176 MACHINE DRAWING
