Machine drawing; a text and problem book for technical students and draftsmen (1921)
Svensen, Carl L. (Carl Lars), 1884- · New York, D. Van Nostrand company · leaf 49

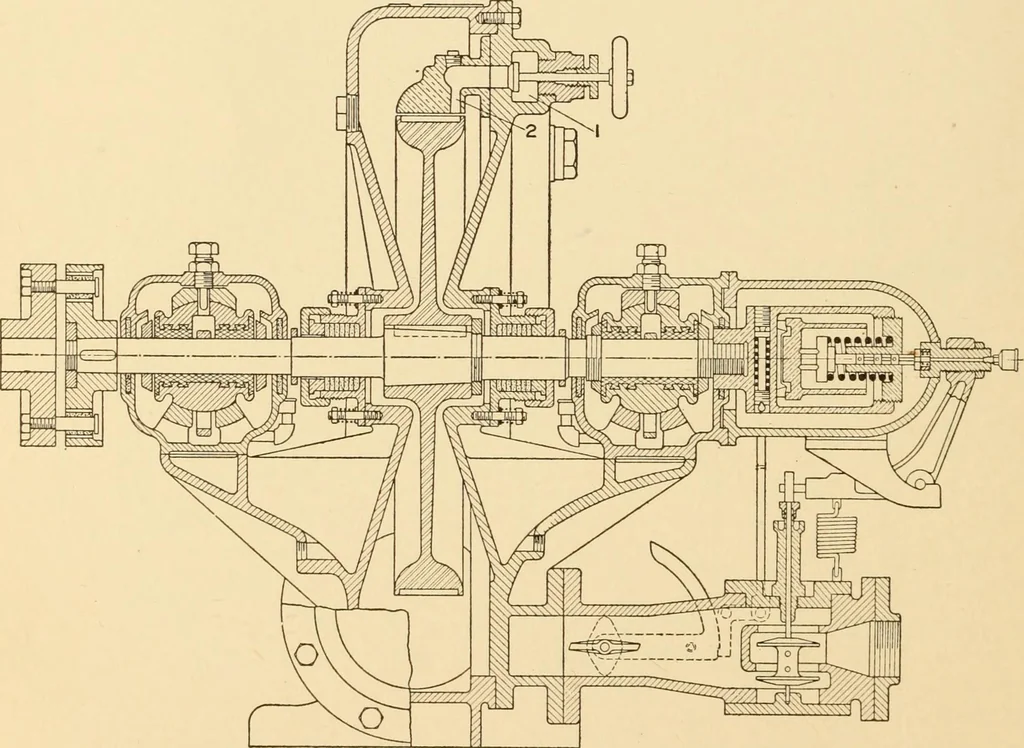

semblydrawings and detail drawings. These have been listed as follows: A. Assembly drawings in outline or section. Design lay-out drawings. Erection Drawings. Skeleton or diagram drawings. B. Assembly working drawings. Part assembly working drawings. Location draw- ings to show relation of parts… … Fig. 73. Main Assembly Drawing.38 MACHINE DRAWING 39 72. A main assembly drawing of a B. F. Sturtevant Co., Type 6,Steam Turbine is shown in Fig. 73. Steam enters an annular steam chamber in the casing of the turbine through abalanced throttle valve (1). From this chamber it passes through nozzles…
