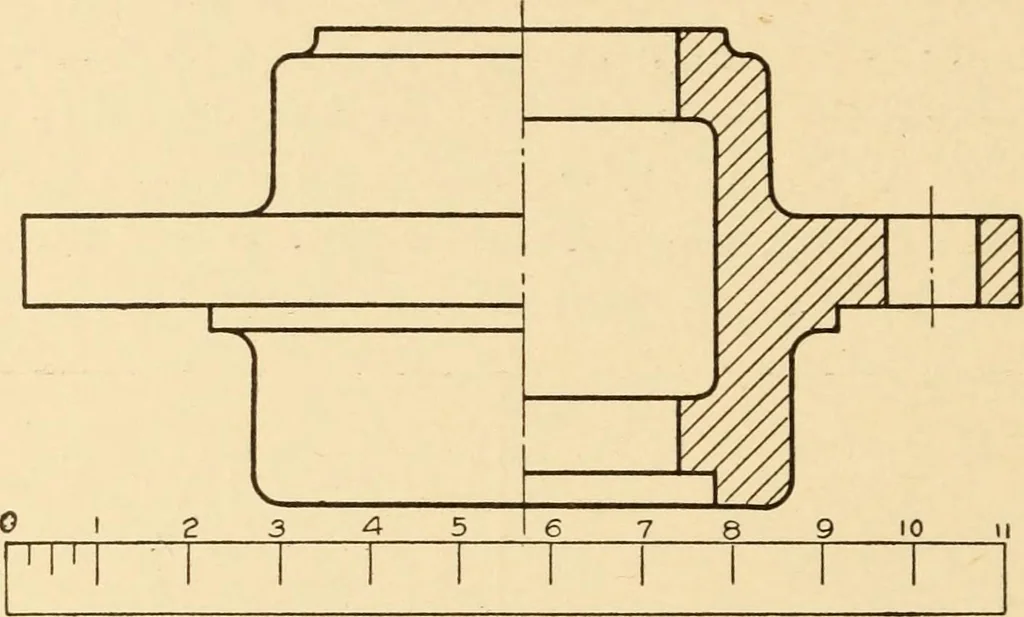

Section B-B Section C-C Fig. 85. Sliced Sections. 48 MACHINE DRAWING where the shape of the sectioned surface is the important feature orwhen the full lines beyond the cut surface require a great deal of time todraw without adding to the usefulness of the drawing, they should beleft out as in Fig.… … Fig. 86. Plalf Section. A view should serve the purpose for which it is intended withoutunnecessary or confusing lines. Extra or part views are often sufficient. 84. It is sometimes desirable to show both the exterior and sectionin one view. This can be done when the view is the same on both…
